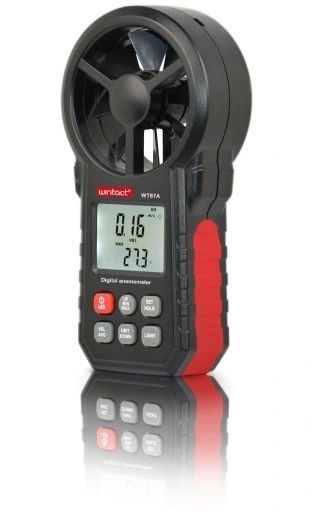

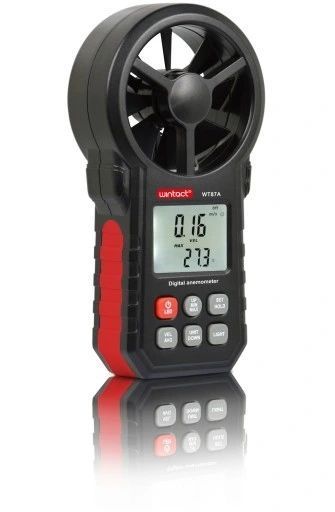

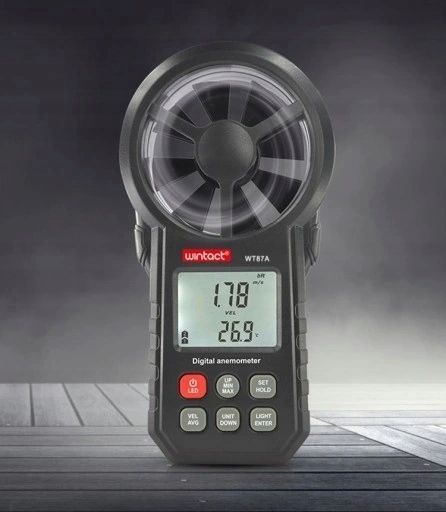

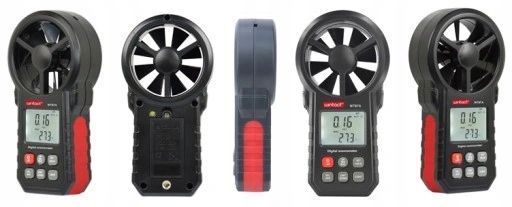

ANEMOMETER - WIND METER WINTACT WT87A

This device is designed to measure wind speed in the range of 0 to 30 m/s (0-90 km/h). An anemometer, also known as a wind meter, is a tool used to determine the speed of air movement. The WT87A model is a rotor anemometer, which means it has an eight-blade rotor that starts to spin under the influence of the flowing air.

This device stands out with its rich features, making its use not only convenient but also effective, providing measurement results that are accurate and easy to interpret, appropriately tailored to various measurement needs.

DEVICE CHARACTERISTICS:

The WINTACT WT87A wind meter is characterized by high quality of workmanship, is lightweight, and easy to use.

It has a large, built-in rotor with eight blades, which significantly increases the sensitivity of the device and allows measurements to start even with minimal air movement.

The anemometer provides precise and accurate measurement results, with a resolution of up to one decimal place, depending on the selected units. The accuracy of the results oscillates within +/- 5%. The set includes a user manual in Polish and a battery, making it easier to start working with the device.

DEVICE FUNCTIONS:

1. Measurement of wind speed and temperature.
2. Wind chill index (WINDCHILL).
3. Various measurement units to choose from.
4. Measurement in real-time and average air speed.
5. Measurement of maximum and minimum air speed.
6. Two temperature units: Fahrenheit and Celsius.
7. Auto shut-off (automatic shutdown after 10 minutes of inactivity)
8. Mini flashlight

TECHNICAL PARAMETERS:

AIR SPEED:

• Range: 0~30 m/s / 0~5860 Ft/min / 0~55 Knots / 0~90 Km/h / 0~65 Mph
• Resolution: 0.1 (m/s) / 1.968(Ft/min) / 0.019 (Knots) / 0.036 (Km/h) / 0.022 (Mph)
• Start threshold: 0.3 (m/s) / 60 (Ft/min) / 0.6 (Knots) / 1 (Km/h) / 0.7 (Mph)
• Accuracy: ± 5%

TEMPERATURE:

• Range: -10°C~+45°C / 14°F~113°F
• Resolution: 0.1 (°C) / 0.2 (°F)
• Accuracy: ± 2°C / ± 3.6°F

OTHER:

• Battery: 9V 6F22 (included)
• Thermometer: NTC Thermometer
• Operating temperature: -10°C~+45°C (14°F~113°F)
• Operating humidity: Below 90% RH
• Storage temperature: -10°C~+50°C (14°F~122°F)
• Power consumption: about 6mA
• Weight: 184 (with battery)
• Dimensions: 165 x 85 x 39 mm

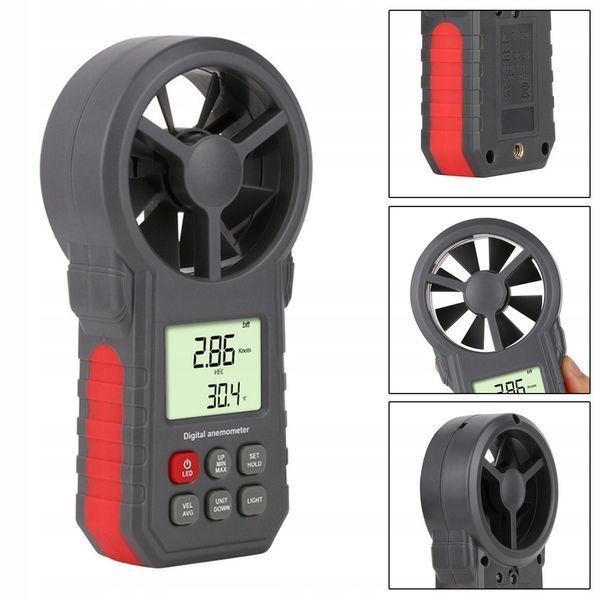

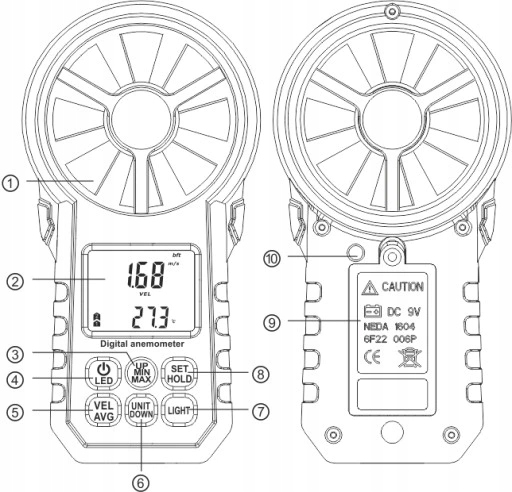

DESCRIPTION OF THE HOUSING ELEMENTS:

1. Fan blades
2. LCD display
3. Up/max mode/min mode.
4. Power on/device screen backlight
5. Measurement of average values
6. Speed unit selection/down
7. LED backlight
8. Result hold/Settings

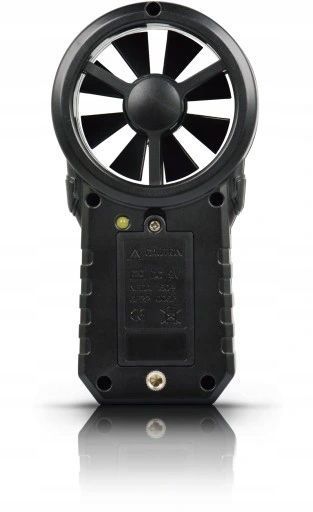

9. Battery cover
10. LED flashlight diode

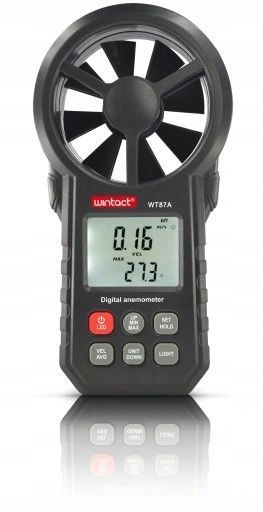

DESCRIPTION OF THE DISPLAY ELEMENTS:

1. Beaufort scale.
2. Low battery indicator.
3. Icon of the active auto shut-off mode of the device.
4. Air speed units: m/s, km/h, ft/min, knots, mph.
5. Wind chill indicator.
6. Air speed icon.
7. Average air speed.
8. Data hold.
9. Temperature unit.
10. Temperature value.
11. Max. air speed.
12. Min. air speed.
13. Multiplier X10, X100 (X10 when the measurement value exceeds 99.99, X100 when the measurement value exceeds 999.99)
14. Air speed value
