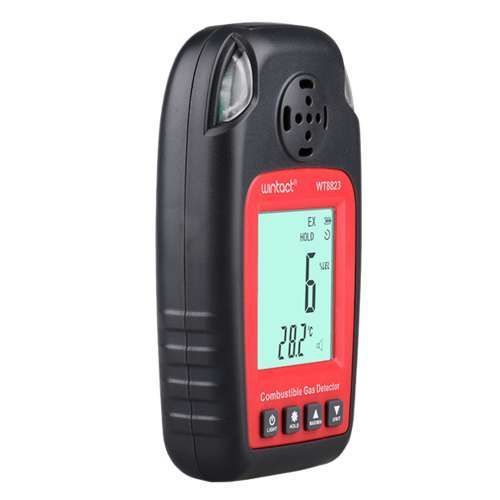

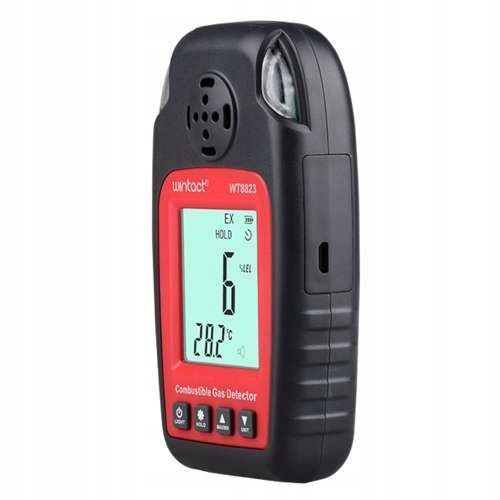

WINTACT WT8823 FLAMMABLE GAS CONCENTRATION METER

(Natural gas – Exhaust – Propane – Butane – Methane)

Professional detector for detecting leaks and monitoring gas concentrations

The WINTACT WT8823 meter is a precise tool for detecting flammable gases and monitoring their concentrations in installations. The device allows for quick and effective localization of leaks, significantly increasing user safety.

A clear high-resolution screen displays accurate measurement values, enabling early detection of potential hazards related to gas leaks or excessive concentrations.

Applications of the meter:

Thanks to its compact and handy design, the detector is perfect for various environments, allowing for:

✔ Detection of leaks in gas pipelines,

✔ Measurement of exhaust gas concentrations,

✔ Localization of fuel and propane leaks,

✔ Control of the tightness of flammable gas pipelines.

The device meets European safety standards, ensuring its reliability and high quality of operation.

Technical parameters:

• Measurement range: 0 – 100% LEL (lower explosion limit of flammable gases)

• Type of sensor: semiconductor

• Response time: ~10 seconds

• Alarm threshold: 10% LEL (for methane)

• Operating temperature: 0°C – 50°C

• Working current: 200 mA

• Power supply: 3 × 1.2V NiMH battery (weight: 36.5 g)

• Operating voltage: 3.6 V

• Dimensions: 67.98 × 47 × 119.98 mm

• Weight: 111.9 g (without battery)

• Safety standards: Ex ib IIB T3 Gb (compliance with explosion protection standards)

Key features and functions:

✔ Measurement result hold (HOLD) – the ability to freeze the reading on the screen for easier analysis.

✔ MAX/MIN function – recording and displaying maximum and minimum values during the measurement session.

✔ Adjustable alarm threshold – the ability to customize the upper and lower warning limits according to needs.

✔ Calibration function – zero and point calibration for precise readings.

✔ Automatic shutdown – optional energy-saving feature (default 10 minutes of inactivity).

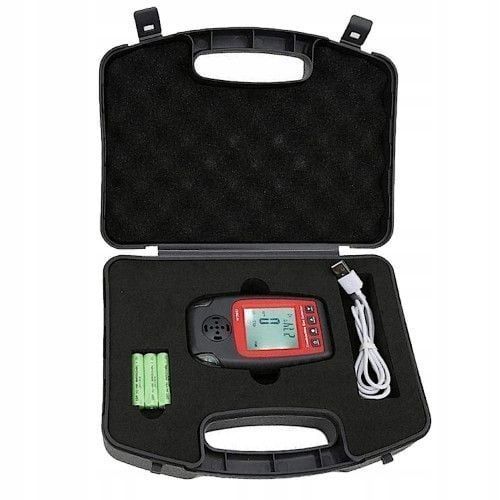

✔ Charger and batteries included – longer operating time without the need for frequent battery replacements.

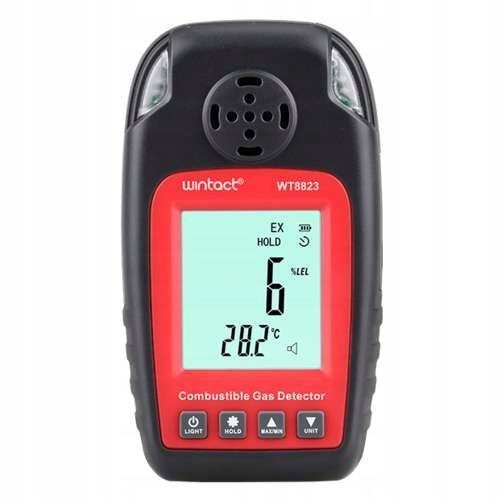

DESCRIPTION OF DEVICE ELEMENTS:

1. Power button and screen backlight.
2. Measurement pause button and other settings.
3. Button for maximum and minimum value mode. Up (menu).
4. Down (menu). Unit selection.
5. LCD display.
6. Sensor inlet openings.
7. LED indicating alarm.

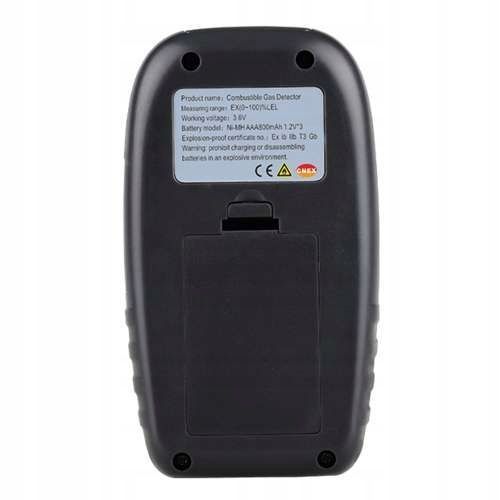

8. Sticker - device specification.
9. Battery compartment cover.

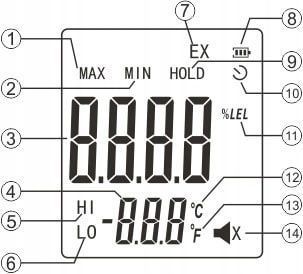

DESCRIPTION OF DISPLAY ELEMENTS:

1. Maximum value.
2. Minimum value.
3. Measurement value.
4. Temperature.
5. Upper alarm threshold indicator.
6. Lower alarm threshold indicator.
7. Flammable gases icon.
8. Battery charge level icon.
9. Measurement result hold icon.
10. Automatic shutdown icon.
11. Unit of measurement for flammable gases.
12. Temperature unit - degrees Celsius.
13. Temperature unit - degrees Fahrenheit.
14. “Buzzer” icon (beeper) on/off

Safety and precision of operation

The WINTACT WT8823 meter provides fast and accurate detection of flammable gases, allowing for immediate response to potential hazards. With the ability to adjust alarm thresholds and an intuitive interface, the device is an excellent choice for both professionals and individual users.

Reliability, compact design, and modern technologies make WINTACT WT8823 the ideal solution for monitoring air quality in various work environments.
