GAS CONCENTRATION METER HABOTEST HT601B

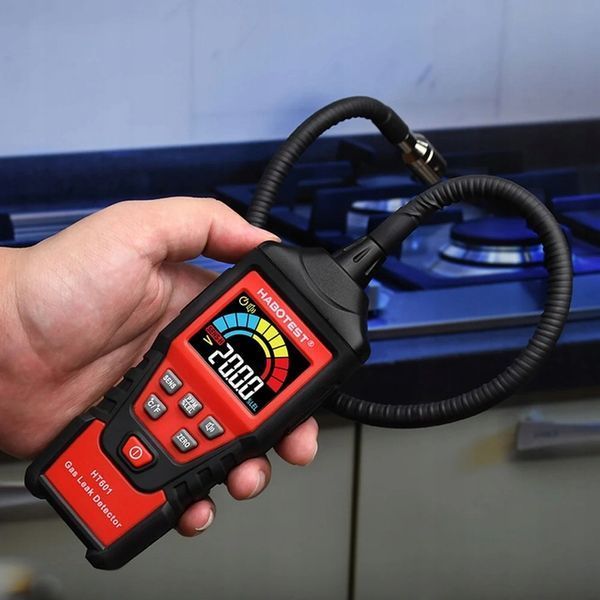

The Habotest HT601B is a fast and accurate gas leak detector which, in addition to detection, also measures concentration in PPM and measures temperature. The device features a color LCD display with clear digital readout and a bar graph, as well as audible and visual alarms to warn when a hazard is detected.

Thanks to its compact housing and comfortable shape, the meter fits well in the hand, and the flexible neck makes it easier to reach hard-to-access areas, e.g., around gas installations, pipes, and joints.

VERSATILE APPLICATIONS
The detector is suitable for use in:

• homes and apartments (safety checks),

• workshops and industrial plants,

• laboratories and inspection departments,

• checking gas installations in buildings,

• inspecting LPG systems in vehicles,

• anywhere there is a risk of flammable gas leakage.

The device detects a wide range of gases, including methane, propane, butane, natural gas, hexane, acetylene, and many others.

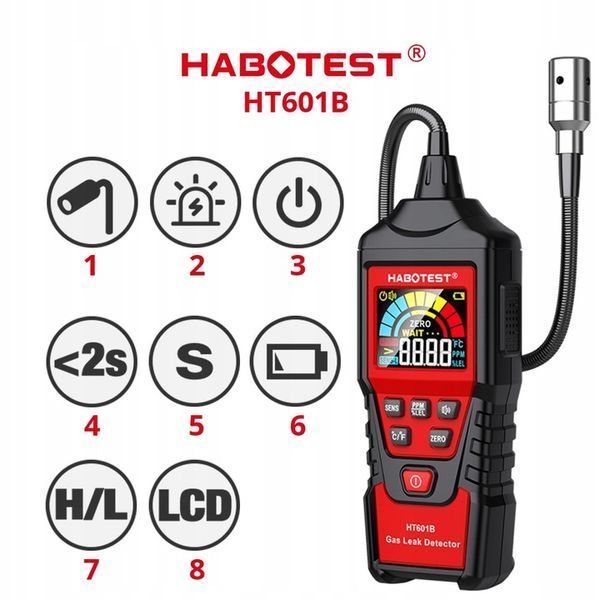

Detector features:

1. high-sensitivity sensor
2. dual alarm system: audible and visual
3. power-saving mode – auto power-off
4. fast response time: less than 2 seconds
5. durable, flexible neck for hard-to-reach areas
6. low battery indicator to keep you ready for work
7. selectable high/low detection sensitivity (H-high, L-low)
8. backlit, color LCD screen

KEY FUNCTIONS AND FEATURES

• measurement of flammable gas concentration in PPM and % LEL

• gas detection in the LEL area (Lower Explosive Limit)

• dual alarm: light + sound

• fast response: < 2 seconds

• warm-up time: approx. 30 s

• automatic or manual zeroing

• sensitivity selection: H (high) / L (low)

• color backlit LCD + bar graph

• low battery indicator

• auto power-off (energy saving)

• flexible probe/neck approx. 16 inches (about 40 cm)

• battery power (3 × AAA) provides independence and convenience for field work

TECHNICAL PARAMETERS

• Manufacturer: Habotest

• Model: HT601B

• Measuring range: 0–9999 PPM / 0.00–20.00% LEL

• Detectable gases: flammable gases (LEL)

• Accuracy: ≤10% FS (methane)

• Sensitivity: <50 PPM (methane)

• Response time: <2 s

• Warm-up time: approx. 30 s

• Display: digital + bar graph

• Alarm: visual and audible

• Zeroing: automatic / manual

• Auto power-off: yes

• Battery indicator: yes

• Flexible probe: approx. 16 inches

• Power supply: 3 × AAA 1.5 V (included)

• Weight: approx. 350 g

• Dimensions: 225 × 60 × 33 mm

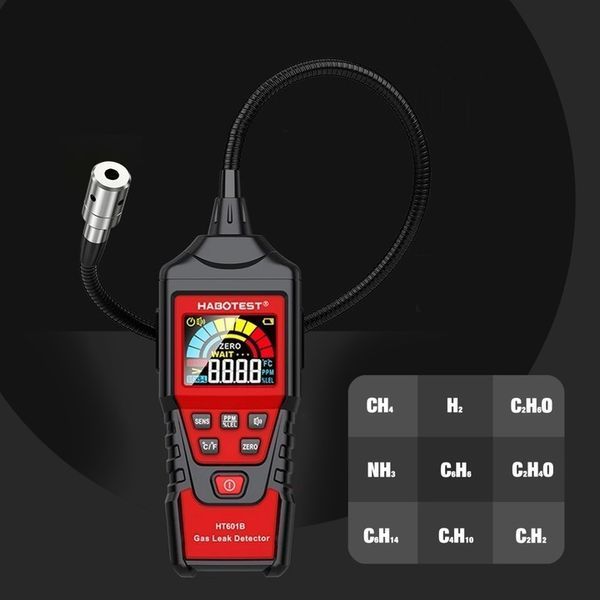

DETECTABLE GASES (examples)
Acetone, acetylene, alcohol/ethanol, ammonia, benzene, gasoline, butane, ethane, hexane, hydrogen, methane, kerosene, natural gas, propane, thinners and solvents, and other flammable gases.

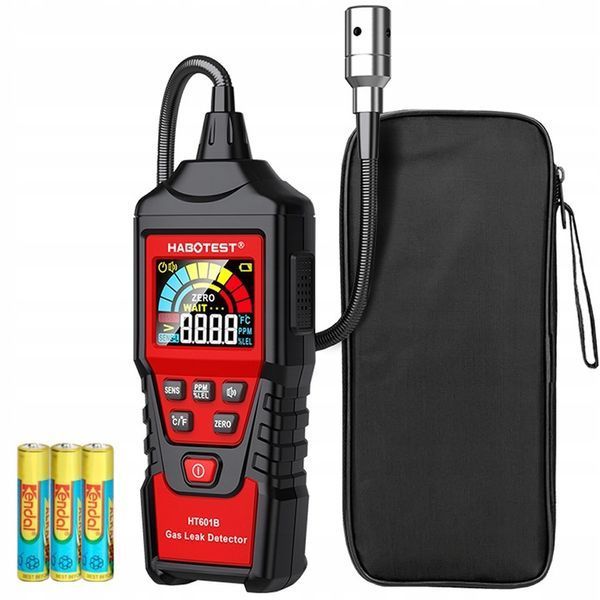

PACKAGE CONTENTS

• Habotest HT601B gas detector

• zippered carrying case

• 3 × AAA batteries

• user manual (PL and EN)

• original packaging

Habotest is a brand specializing in practical measuring devices such as multimeters, installation testers, temperature meters, and detectors. Habotest products are valued for functionality, clear displays, and a good price-to-performance ratio, making them suitable for both home and professional use.
