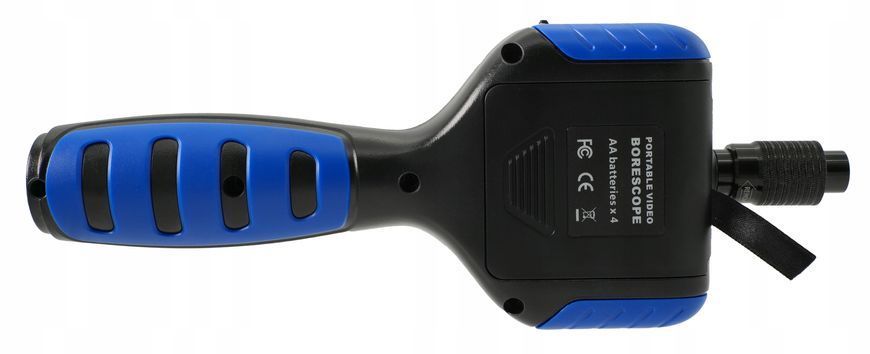

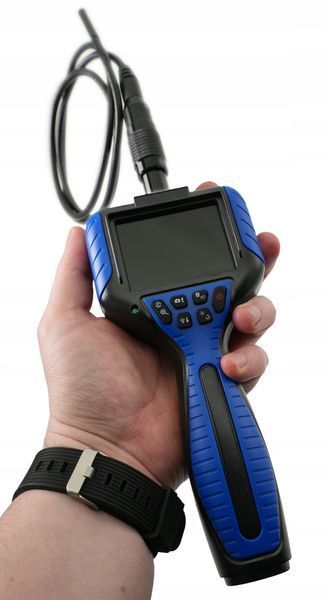

PROTESTER PRO-VS99D5 – Diagnostic Video Endoscope for Vehicles

PRO-VS99D5 is a modern automotive digital video endoscope from the PROTESTER brand, designed for precise visual inspection of hard-to-reach structural and mechanical components in vehicles. The device allows for convenient and quick diagnostics without the need for disassembly, e.g., verifying the condition of the combustion chamber through the spark plug hole.

Technical Specifications:

• Model: PRO-VS99D5

• Dimensions: 350 x 210 x 55 mm

• Weight: 0.3 kg

• Display: 2.7" TFT

• Display Resolution: 480 x 272

• Camera Resolution: 1280 x 720 (HD)

• Frame Rate: 30 fps

• Field of View: 60°

• Focal Length: 10 – 50 mm

• Probe Diameter: 5.5 mm

• Probe Length: 1 m

• Minimum Bending Radius: 50 mm

• Power Supply: 4 AA batteries

• Operating Temperature: 0°C – 65°C

• Protection Class: IP67 (probe)

• USB Connection: micro USB

• File Format: JPEG (photos), AVI (video)

• System Compatibility: Windows

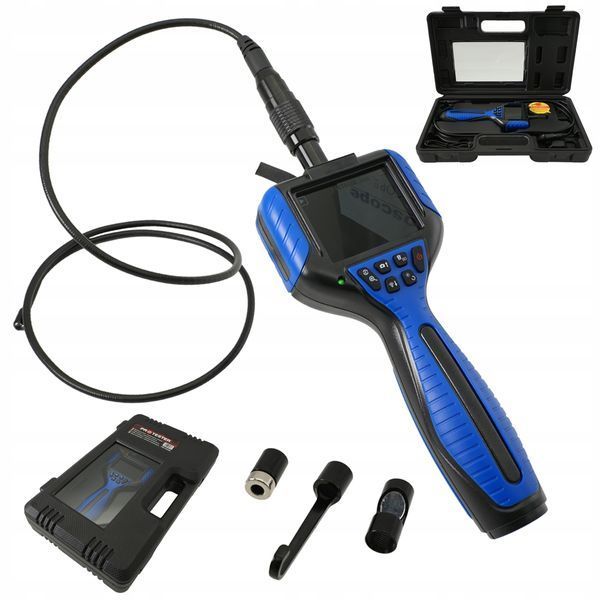

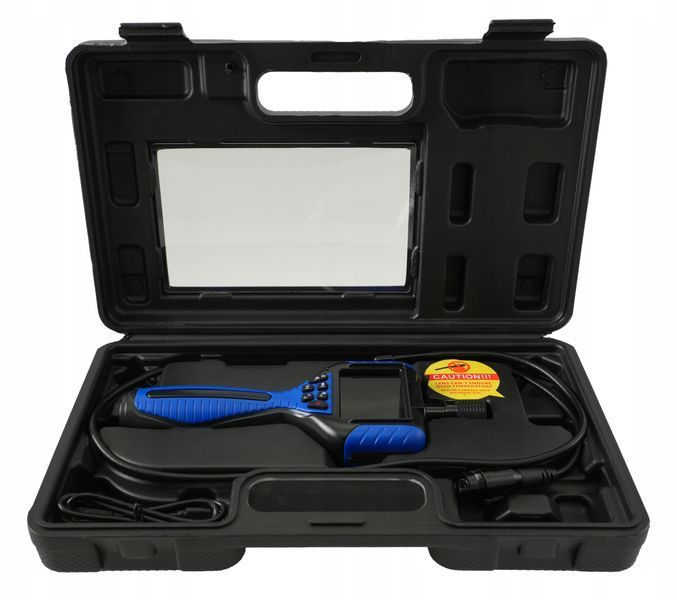

Package Contents:

• PRO-VS99D5 Video Endoscope

• Set of attachments (magnet, hook, mirror)

• Micro USB cable

• User manual

Application Possibilities:

With a flexible, waterproof probe featuring a miniature camera, it is possible to conduct inspections of the engine interior, valves, EGR system, and many other components. The high-resolution image allows for the assessment of damage, dirt, or wear of mechanisms. The built-in recording function enables archiving of materials or presenting them to the vehicle owner as justification for repairs.

Main Features of the Device:

• Color CMOS camera with a diameter of 5.5 mm

  Lens protected by tempered glass – ideal for working in difficult conditions.

• LED backlighting with brightness adjustment

  Enables operation in completely dark spaces.

• Image resolution 1280x720 HD

  Detailed photos and videos with a wide field of view of 60°.

• Real-time preview and recording

  Video recording in AVI format and photos in JPEG directly on the device.

• 2.7" color display with a resolution of 480x272

  Clear screen for fieldwork.

• Simple, multilingual user interface

  Intuitive operation without the need for training.

• Mini USB port

  Facilitates convenient data transfer to a computer.

• Flexible, waterproof probe (IP67), length 1 m

  Suitable for inspecting hard-to-reach places.

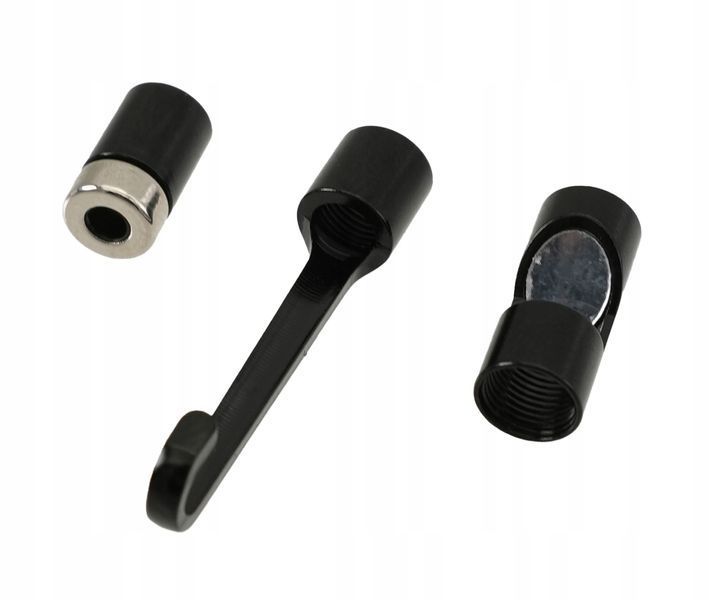

• Interchangeable tips – mirror, magnet, hook

  Additional tools for working in confined spaces.
