WINTACT WT3160 THERMAL CAMERA

Advanced device for precise, non-contact surface temperature measurement

Precise image of temperature distribution

The thermal camera Wintact WT3160 is a professional device that allows for accurate analysis of surface and object temperatures in real-time. Thanks to the advanced infrared sensor and high resolution of 160 x 120 pixels (19,200 measurement points), the camera creates a clear, detailed thermal image, allowing for the detection of structural defects, leaks, or material failures.

Traditional non-contact thermometers measure temperature only at single points, while the thermal camera records the entire area, displaying temperature differences in the form of a readable thermal map on the screen.

Key technical parameters:

• Infrared sensor resolution: 160 x 120 pixels (19,200 measurement points)

• Thermal sensitivity: <70 mK

• Field of view: 35 x 26 degrees

• Minimum focus distance: 0.5 m

• Temperature measurement range: from –20 to +450°C

• Measurement accuracy: ±3°C

• Display: 2.8” color TFT screen (wide) with a resolution of 320 x 240 pixels

• Built-in memory: 3 GB (capable of storing up to 30,000 images in JPG format)

• Power supply: 18650 mAh battery

• Integrated visible light camera

Professional temperature analysis and ease of use

The device has been designed for intuitive operation and precise measurements. With the central point measurement course, the user can easily and quickly locate the target object and determine its temperature.

The camera is also equipped with a built-in visible light camera, allowing for the recording of both thermal and real images. Files can be transferred to a computer via micro USB connection, facilitating the creation of reports and technical documentation.

The compact, ergonomic housing and lightweight design (323 g) ensure comfortable use even for extended periods.

Key features and advantages:

✔ Recording real and thermal images – the ability to simultaneously save visible and thermal images.

✔ Large, color TFT 2.8” display – clear and readable interface facilitates the analysis of measurement results.

✔ Wide 3 GB memory – capable of storing up to 30,000 images in JPG format.

✔ Micro USB connection – fast data transfer to a computer.

✔ Emissivity adjustment – the ability to adjust the radiation coefficient for different surfaces, improving measurement accuracy.

✔ Function for indicating the highest and lowest temperature – quick identification of areas with extreme temperature values.

✔ High thermal sensitivity – allows for the detection of even the smallest temperature differences.

Color palette selection:

The user can choose one of 5 available color palettes that best suit their thermal image analysis needs:

• Rainbow – highlights temperature differences, ideal for general diagnostic applications.

• Iron oxide red – red oxide scale, preferred in engineering and thermal analysis.

• Cold color – emphasizes cold areas, helpful in thermal insulation diagnostics.

• White heat – illustrates temperature in grayscale, useful for detailed analyses.

• Black heat – the opposite of the "White heat" palette, used in industry and research.

Applications of the Wintact WT3160 thermal camera:

✅ Construction and engineering – detecting leaks, thermal bridges, and structural defects.

✅ Electrical diagnostics – locating overheating wires, fuses, and electrical installation components.

✅ Industry and manufacturing – quality control, thermal analysis of machines and equipment.

✅ Agriculture and forestry – monitoring soil temperature, plant health, and livestock.

✅ Veterinary medicine – diagnosing inflammatory conditions and injuries in animals.

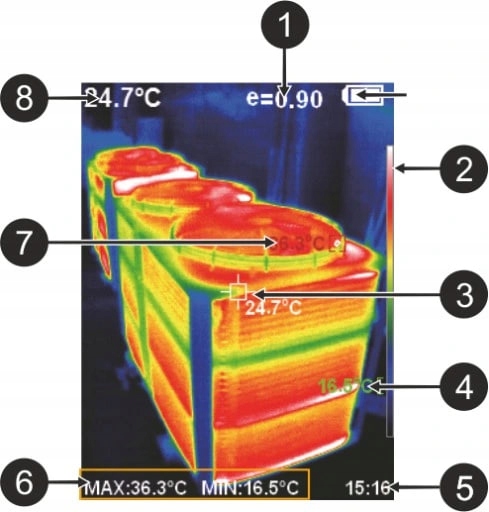

DESCRIPTION OF DISPLAY ELEMENTS:

1. Set emissivity.
2. Battery level indicator.
3. Selected color palette.
4. Temperature cursor of the central point of the lens.
5. Cursor for the lowest temperature in the field of view.
6. Time.
7. Maximum and minimum value in the field of view.
8. Cursor for the highest temperature in the field of view.
9. Temperature at the central point of the lens.

DESCRIPTION OF HOUSING ELEMENTS:

1. Lens cover.
2. Visible light camera.
3. Infrared camera.
4. LED backlighting.
5. Image capture button (shutter) and LED backlighting activation (long press).
6. Battery compartment.

DESCRIPTION OF HOUSING ELEMENTS:

• A: Micro USB connection

• B: Screen

• C: Keyboard

• D: Handle

✅ EXAMPLE APPLICATIONS OF THE THERMAL CAMERA

The thermal camera is a versatile diagnostic tool that allows for quick and precise analysis of temperature differences in various industries and applications. With it, one can detect faults, monitor installations, and improve the energy efficiency of buildings.

Applications in construction and heating systems:

✔ Leak detection – identifying leak points in water and central heating installations.

✔ Locating heating pipes – quickly determining the path of pipes in walls and floors.

✔ Diagnostics of underfloor heating – checking the proper functioning of the system and detecting air pockets.

✔ Detection of thermal bridges – identifying areas of heat loss in walls, roofs, and windows.

✔ Assessment of insulation quality – checking the effectiveness of insulation layers in buildings.

✔ Detecting drafts – analyzing leaks in doors, windows, and ventilation systems.

✔ Avoiding mistakes during drilling – locating pipes and wires in walls and floors to prevent accidental damage.

Applications in electrical installations:

✔ Control of distribution boxes – diagnosing temperature and identifying loose contacts.

✔ Checking the condition of fuses and contactors – detecting overheating components.

✔ Monitoring wire load – identifying areas of excessive heating that may lead to failure.

✔ Diagnostics of electronic circuits – analyzing the temperature of printed circuit boards and device components.

Other practical applications

✔ Identifying moisture and leaks – detecting wet spots and leaks in roofs, walls, and foundations.

✔ Checking the tightness of windows and doors – detecting heat loss and leaks in protective systems.

✔ Building inspection before purchase – detecting hidden structural defects and thermal issues.

With a wide range of functions, the thermal camera is an invaluable tool for both professionals and individual users, helping to save time, energy, and money through quick diagnostics and precise problem detection.

SET CONTENT:

• Wintact WT3160 thermal camera,

• sturdy and handy protective case,

• USB wall charger,

• built-in 18650 mAh battery,

• USB - Micro USB cable (for charging and data transfer),

• user manual,

• lanyard

• original outer packaging.

Summary:

The thermal camera Wintact WT3160 is an advanced diagnostic tool that provides precise temperature measurement over a wide range. With its high sensor resolution and wide color palette, it allows for accurate analysis of objects and surfaces.

• High quality thermal image

• Large memory and easy data transfer

• Ergonomic, compact design

• Ideal for professional and industrial applications

This reliable device is for specialists in many fields, which facilitates quick problem detection and improves work efficiency.
