LASER LEVEL module laser XI'AN ZHONGWEI by PROTESTER LL602R

Characteristics:

• Dimensions: 110x190x110 mm
• Weight: 1 kg
• Power supply voltage: 4.5 V
• Protection class: IP54
• Remote control: No
• Power supply: Li-Ion battery, 3 pcs. AAA
• Power block: Yes
• Measured parameters: Creation of laser beam projection
• Laser class: 2
• Type of level: Linear
• Laser module: XI'AN ZHONGWEI
• Laser color: Red
• Laser line projections: H130°, V130°
• Leveling accuracy: ± 0.2 mm/m
• Self-leveling range: 3°
• Beam visibility without receiver: 15 m
• Tripod thread: 5/8"
• Operation with receiver: No

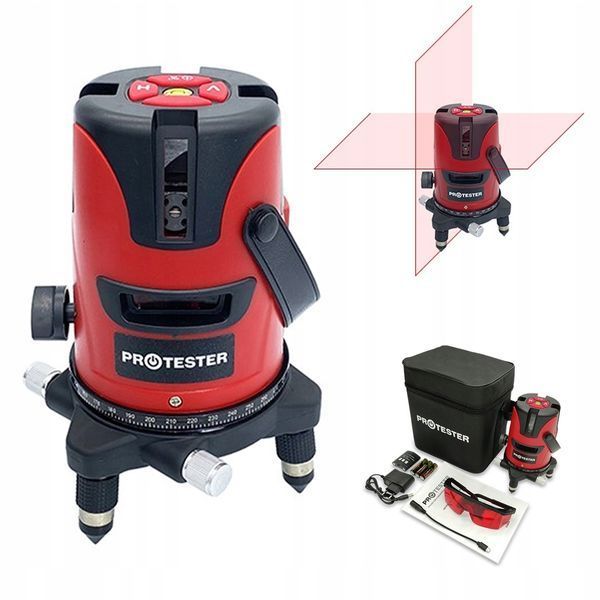

PROTESTER LL602R Laser Level on a Rotating Base

PROTESTER LL602R is a precise and versatile laser level, ideal for taking measurements and marking accurate horizontal and vertical lines both indoors and outdoors. With two bright lines that intersect at a right angle, the device allows for perfect projection of planes on walls and ceilings.

Functionality and Precision

The level is equipped with two class 2 laser emitters that provide beam visibility up to 15 meters. Thanks to the self-leveling mechanism, the leveling time is only 3 seconds, and the operational precision achieves an accuracy of ± 0.2 mm/m. The self-leveling range is ± 3°. The rotating platform with three adjustable legs and micro-adjustments allows for stable positioning of the device even on uneven surfaces.

Intuitive Operation

On the top of the device, there are buttons that allow for quick and easy control:

• Horizontal line on/off button
• Vertical line on/off button
• Beam mode change button

Additionally, on the side of the device, there is a pendulum lock switch, allowing for the marking of diagonal lines. On the top surface, there is a built-in bubble level that facilitates the positioning of the device.

Power Supply and Accessories

The level can be powered by three AAA batteries or a 3000 mAh battery. The set also includes a power block that allows the device to be used directly connected to the electrical network.

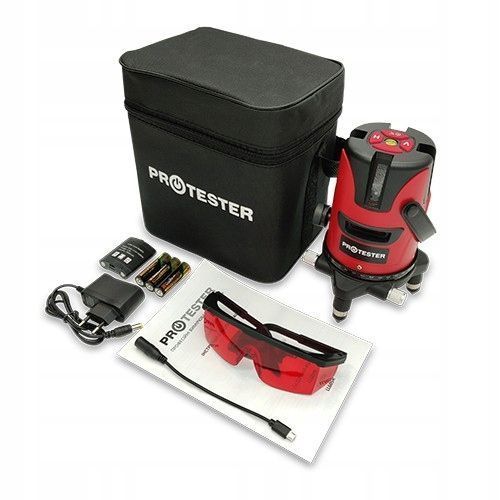

Contents of the set:

• PROTESTER LL602R laser level
• Rotating platform with adjustable legs
• 3000 mAh battery
• 220 V power block
• AAA batteries (3 pcs.)
• Carrying case with strap
• Protective glasses to enhance beam visibility

Applications:

PROTESTER LL602R is indispensable for tasks such as:

• Installing ceilings and baseboards
• Laying tiles and floor panels
• Wallpapering
• Leveling walls and ceilings
• Measurement work outdoors

PROTESTER LL602R is an excellent combination of precision, functionality, and durability, suitable for both professional and home applications.
