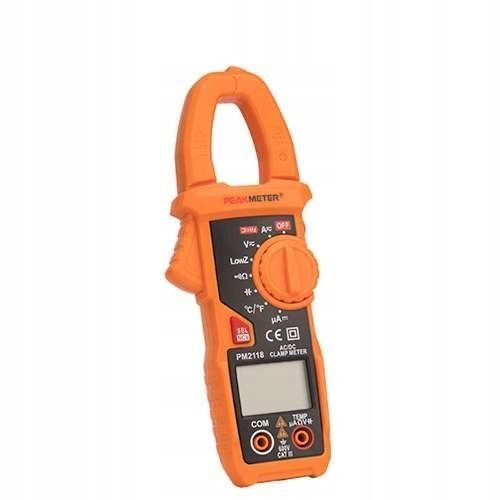

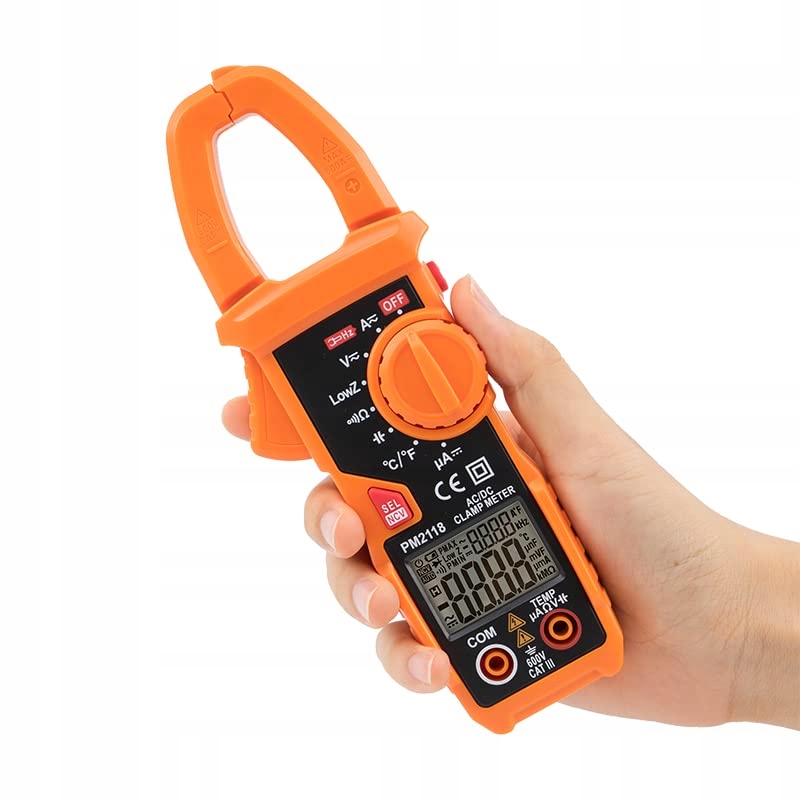

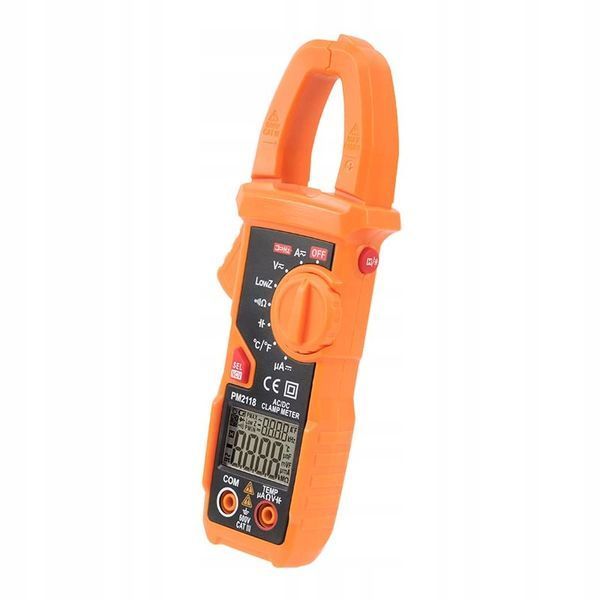

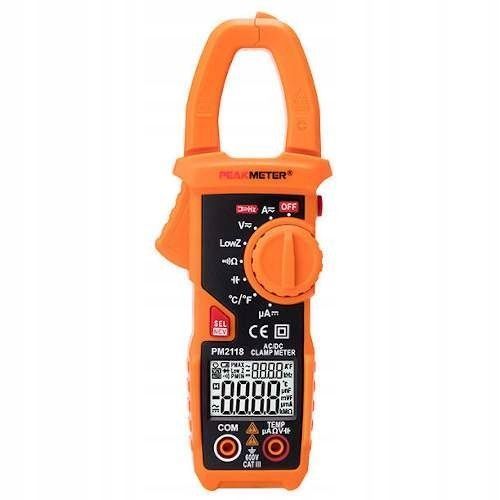

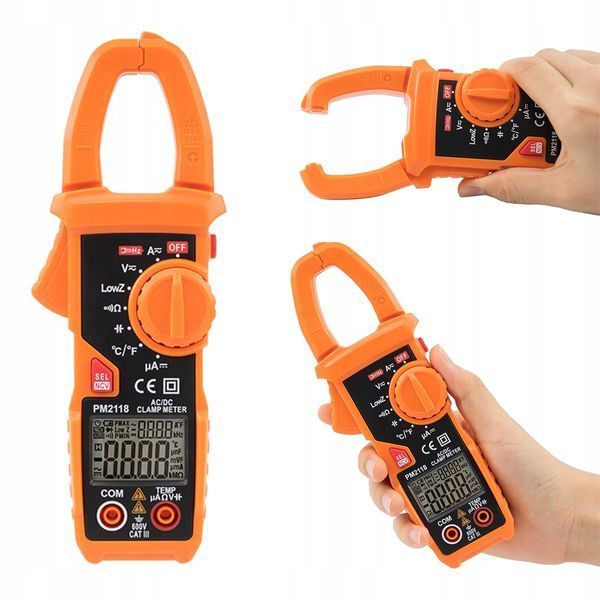

CLAMP METER FOR MEASURING DC CURRENT

WITH MULTIMETER FUNCTION AND THERMOCOUPLE PEAKMETER PM2118

Professional clamp meters for AC/DC current with multiple functions

Versatile tool for electricians and technicians

The PeakMeter PM2118 is an advanced clamp meter that allows for precise measurement of direct current (DC) and alternating current (AC) up to 600A. In addition to standard functions, the device also offers measurement of voltage, resistance, capacitance, frequency, and temperature thanks to the included thermocouple.

The device features a dual-line LCD display (6000 readings), which allows for simultaneous display of several measurement parameters. With the automatic range selection function, operating the meter is intuitive and convenient.

An additional advantage is the NCV function, which enables non-contact detection of live wires, increasing user safety.

Main features and advantages

• AC/DC current measurement up to 600A – accurate readings in various conditions

• AC/DC voltage measurement up to 600V – wide application in electrical installations

• Resistance measurement up to 60 MΩ – quick diagnostics of electrical components

• Capacitance measurement up to 6 mF – control of capacitors in electronic circuits

• Temperature measurement (–20°C to 1000°C) – ability to monitor temperature with the thermocouple

• Frequency measurement (60 Hz – 1000 kHz) – accurate analysis of electrical signals

• Non-contact voltage detection (NCV) – increased work safety

• Low input impedance mode (LowZ) – reduction of measurement interference

• Diode and continuity testing with audible signal – convenient diagnostics of wires

• Automatic range selection – simplified operation

• Backlit LCD display (6000 readings) – clear results even in darkness

• Automatic shutdown after 10 minutes of inactivity – energy saving

• Power supply 2 × AAA – easy battery replacement

Technical specifications:

• DC voltage measurement range: 6 – 600V (accuracy ±0.5%)

• AC voltage measurement range: 6 – 600V (accuracy ±0.8%)

• DC current measurement range: 60 – 600A (accuracy ±3%)

• AC current measurement range: 60 – 600A (accuracy ±3%)

• Resistance measurement range: 6 – 60 MΩ (accuracy ±0.8%)

• Capacitance measurement range: 600 nF – 6 mF (accuracy ±4%)

• Frequency measurement range: 60 Hz – 1000 kHz (accuracy ±1%)

• Temperature measurement range: –20°C to 1000°C (accuracy ±1°C)

• LowZ mode: yes, for measuring low impedance voltage

• NCV function: yes, non-contact voltage detection

• Display backlight: yes

• Power supply: 2 × AAA battery (3V)

• Clamp opening diameter: 24 mm

• Dimensions: 189 × 70 × 37 mm

• Weight: 0.25 kg

Robust construction and convenient operation

The PM2118 meter features an ergonomic design that allows for comfortable use in any conditions. The housing made of durable material ensures resistance to mechanical damage, and the clear LCD display with backlight allows for comfortable work even in dark rooms.

The intuitive user interface, automatic range selection, and easy operation make the device an ideal tool for both professionals and electronics enthusiasts.

Applications of the PM2118 clamp meter

• Diagnostics of electrical installations – measurement of voltage, current, resistance
• Testing of electronic circuits – analysis of capacitance, diodes, and continuity
• Temperature measurement in HVAC and industrial systems – wide range from –20°C to 1000°C
• Non-contact voltage detection (NCV) – quick localization of live wires
• Monitoring of energy systems – precise measurements in various applications

Summary – why choose PM2118?

• AC/DC current measurement up to 600A – universal application
• Advanced LCD display (6000 readings) – readability in all conditions
• Non-contact voltage detection (NCV) – additional safety
• Temperature measurement (–20°C to 1000°C) – versatility of application
• LowZ mode – low input impedances – reduction of measurement interference
• Compact dimensions and ergonomic design – comfortable use

With advanced features, solid construction, and easy operation, the PM2118 is the ideal tool for electricians, installers, and service technicians looking for reliable clamp meters.

PeakMeter is a reputable manufacturer of modern measuring instruments, including multimeters, clamp meters, insulation testers, and sound level meters. The company is recognized for high quality, innovative solutions, and reliable products, suitable for both professional and hobby applications.
