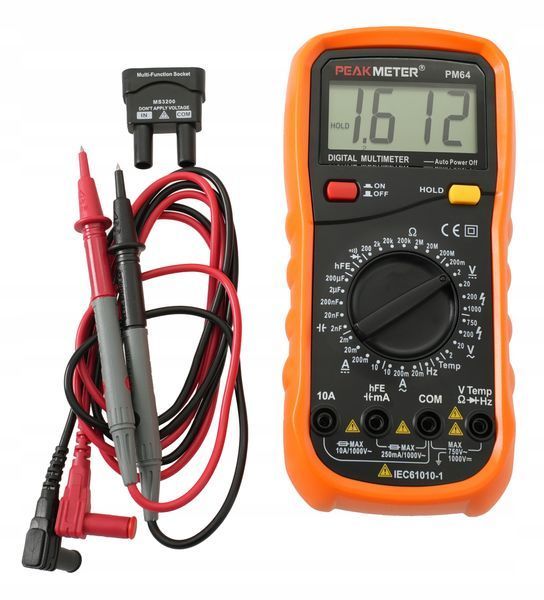

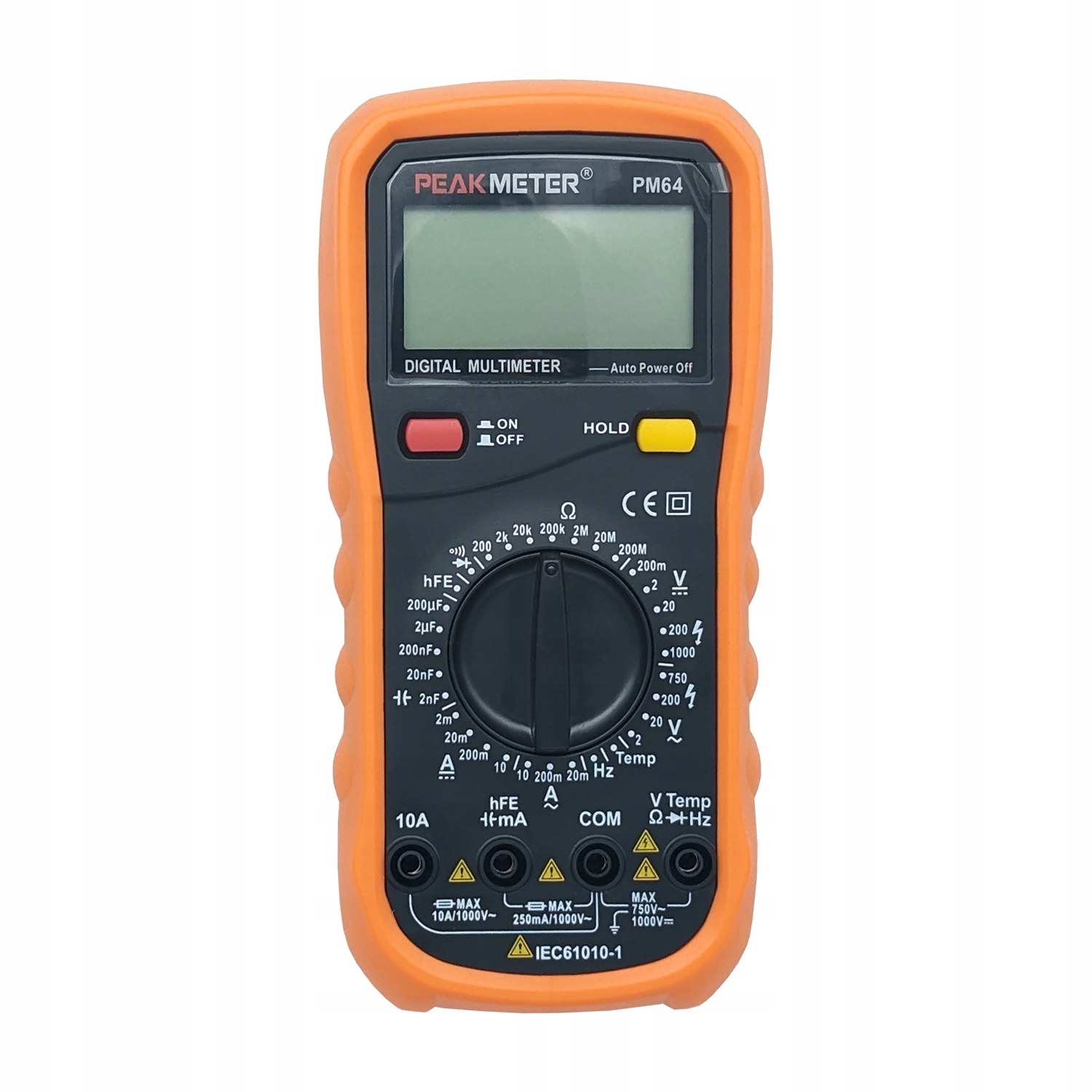

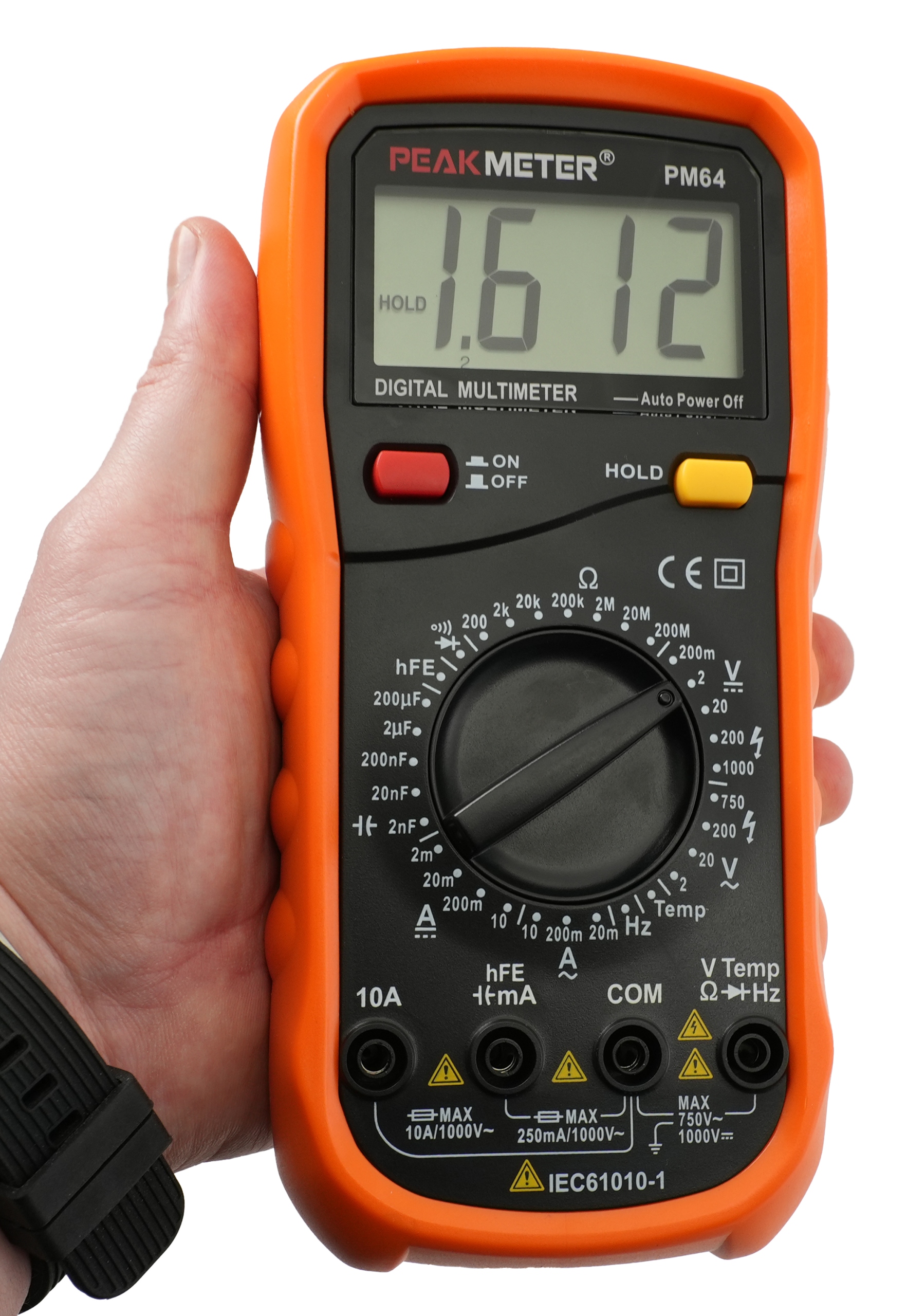

DIGITAL MULTIMETER WITH THERMOCOUPLE PeakMeter PM64

Versatile measuring device for electricians and electronics enthusiasts

Advanced measurement capabilities

The PeakMeter PM64 multimeter is a modern and precise device designed for measuring voltage, current, resistance, capacitance, frequency, and temperature. With a wide range of functions and high accuracy, it is suitable for both professional electricians and hobbyists working with electronics.

The multifunctionality of the meter allows it to be used in installation and diagnostics of electrical systems, testing electronic components, and servicing electrical and electronic devices.

• Measurement of direct and alternating voltage – up to 1000V DC and 750V AC

• Measurement of direct and alternating current – up to 20A DC and 10A AC

• Measurement of resistance – up to 200 MΩ

• Measurement of capacitor capacitance – up to 200,000 nF

• Measurement of frequency – up to 20 MHz

• Measurement of temperature – from 0°C to 1000°C using the included thermocouple

• Diode and continuity testing – quick diagnostics of electrical circuits

• Transistor testing – measurement of hFE gain factor

• Manual range selection – full control over measurements

• LCD display – large screen with a resolution of 2000 readings

• Automatic shutdown – energy saving during prolonged inactivity

• Durable housing with protective bumper – increased resistance to impacts and falls

• Foldable stand – allows stable positioning of the meter on a table

Technical specifications:

• DC voltage measurement range: 0.2 - 1000V (accuracy ±0.5%)

• AC voltage measurement range: 2 - 750V (accuracy ±0.8%)

• DC current measurement range: 0.002 - 20A (accuracy ±0.8%)

• AC current measurement range: 0.02 - 10A (accuracy ±1.0%)

• Resistance measurement range: 0.2 - 200 MΩ (accuracy ±0.8%)

• Capacitance measurement range: 20 - 200,000 nF (accuracy ±4%)

• Frequency measurement range: up to 20 MHz (accuracy ±2%)

• Temperature measurement range: 0 - 1000°C (accuracy ±5°C)

• Power supply: 9V battery (type "crown")

• Dimensions: 188 × 93 × 50 mm

• Weight: 0.38 kg

Functionality and user comfort

The PeakMeter PM64 multimeter features a clear LCD display that presents results in a transparent and readable manner. Manual range adjustment allows for precise setting adjustments for measurements, increasing reading accuracy.

Thanks to the automatic shutdown function, the device saves energy and extends battery life. Robust construction with a rubber protective bumper makes the meter resistant to accidental mechanical damage.

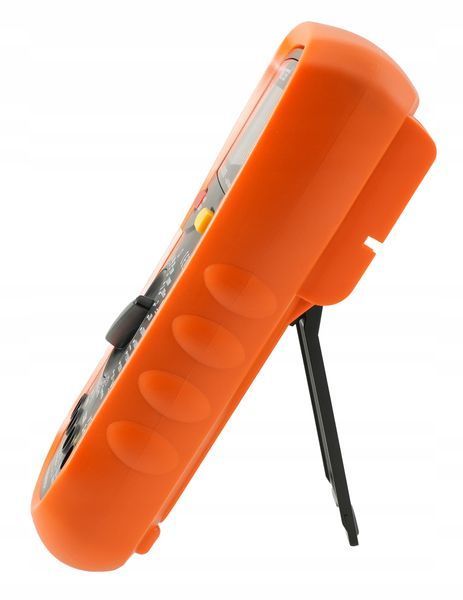

The foldable stand on the back of the housing allows for stable positioning of the device on a flat surface, which is particularly useful in workshops and laboratories.

Applications of the PeakMeter PM64 multimeter

• Diagnostics of electrical installations – measuring voltage, current, and resistance

• Testing electronic components – checking diodes, transistors, and capacitors

• Temperature measurement – monitoring the heating of electrical and electronic components

• Servicing electrical devices – testing circuits and analyzing faults

• Education and training – an excellent tool for students and beginner electronics enthusiasts

Summary – why choose PeakMeter PM64?

• Wide measurement range – allows work in various applications

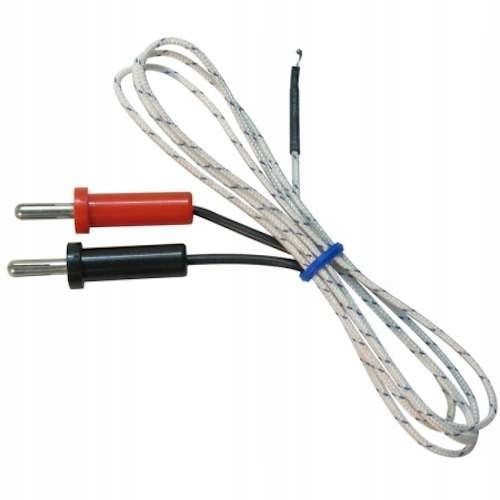

• Temperature measurement using a thermocouple – additional functionality

• Testing diodes, transistors, and continuity – complete electrical diagnostics

• Large and clear LCD display – precise and easy reading of results

• Solid and durable construction – resistant to falls and damage

• Ergonomic shape and foldable stand – user comfort in the workshop

With its extensive features and reliable construction, the PeakMeter PM64 is an excellent choice for anyone who needs a precise and multifunctional meter for working with electrical installations and electronics.

PeakMeter is a well-known brand specializing in the production of modern electrical and electronic measuring instruments. The company offers a wide range of devices such as multimeters, clamp meters, pyrometers, and insulation testers, designed for both professional electricians and home users.
