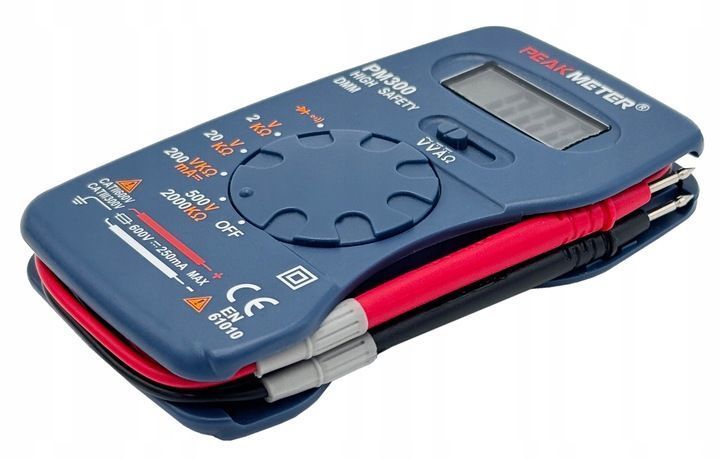

DIGITAL POCKET MULTIMETER PM300 PeakMeter
The PM300 is a compact digital multimeter the size of a smartphone, designed to always be at hand — in a work jacket pocket or a toolbox. Despite its small housing, it offers the full set of measurement functions found in larger and more expensive models.

An ergonomic layout with a clear 2000-count display and built-in test leads allows for quick checks of AC/DC voltage, DC current, resistance, diode testing, and continuity checks. Automatic range selection simplifies operation for beginners and speeds up field measurements — no manual adjustments are needed.

The set includes a durable protective case that secures the device during transport or storage in a toolbox. Its lightweight design (110 g) makes the PM300 an ideal backup multimeter for electricians, installers, and mobile service technicians.

Specifications:

• Dimensions: 120 × 70 × 18 mm

• Weight: 0.11 kg

• Power supply: 12 V battery (1 × GP-23A)

• Display: 2000 counts

• DC voltage range: 2 – 500 V (accuracy ±0.5 %)

• AC voltage range: 200 – 500 V (accuracy ±1.2 %)

• DC current range: 0.0002 – 0.2 A (accuracy ±2 %)

• Resistance range: 2 – 2000 kΩ (accuracy ±1 %)

• Auto range selection: yes

• Additional modes: diode test, continuity with buzzer

• Protection class: CAT II 500 V (typical service applications)

Total length with probes: 475 mm
Cable length: 375 mm
Probe total length: 100 mm
Probe tip length (metal part): 13 mm
Non-removable leads.

Applications:

• quick measurements on 12 V / 24 V vehicle and machinery systems,

• diagnostics of small electronic circuits,

• servicing household appliances (AGD, RTV, OEM),

• checking wires and fuses “in the field” when there is no room for a full-size device.

The PM300 PeakMeter is a handy and reliable tool that makes everyday electrical diagnostics easier in the workshop and on the go.

PeakMeter is a recognized manufacturer of modern measuring instruments, specializing in multimeters, clamp meters, pyrometers, and other electronic tools. The brand is valued for its high quality, measurement accuracy, and affordable price.
