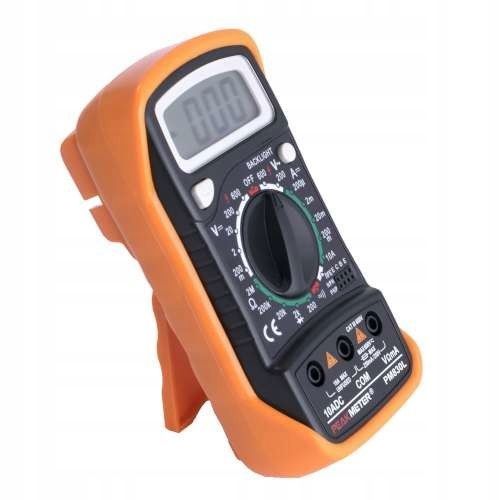

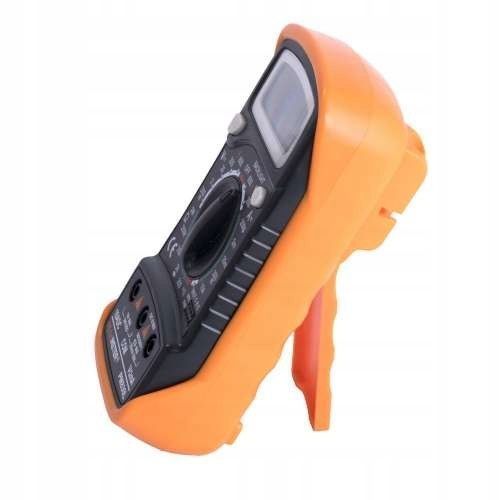

DIGITAL MULTIMETER WITH BACKLIT SCREEN PeakMeter PM830L

Precise meter for measuring voltage, resistance, and current

Multifunctional measuring device

The PeakMeter PM830L multimeter is a modern and versatile device that allows for accurate measurements of electrical parameters. This model features the ability to measure DC and AC voltage, resistance, and DC current.

Its additional advantage is a dedicated button for backlighting the screen, which makes it easier to work in low-light conditions. Thanks to its ergonomic design and intuitive operation, it is perfect for use in electronic service centers, electrical workshops, and at home.

Key features and advantages

✔ Measurement of DC and AC voltage – up to 600V.

✔ Measurement of DC current – up to 10A.

✔ Measurement of resistance – up to 2000 kΩ.

✔ Diode and continuity test – quick diagnostics of wires and electronic components.

✔ Backlit LCD screen – ensures clear reading of results.

✔ HOLD function – freezes the result on the screen for easier reading.

✔ Manual range selection – full control over measurements.

✔ Sturdy construction – damage-resistant rubber protective case.

✔ Compact dimensions and low weight – ideal for mobile use.

Technical specifications:

• DC voltage measurement range: 0.2 - 600V

• DC voltage accuracy: ±0.5%

• AC voltage measurement range: 200 - 600V

• AC voltage accuracy: ±1.2%

• Resistance measurement range: 0.2 - 2000 kΩ

• Resistance measurement accuracy: ±0.8%

• DC current measurement range: 0.0002 - 10A

• DC current measurement accuracy: ±1%

• DC current measurement sensitivity: 0.01A

• Resistance measurement sensitivity: 1000Ω

• Number of readings on the screen: 2000

• Power supply: 9V battery (type "crown")

• Dimensions: 138 × 69 × 31 mm

• Weight: 0.17 kg

Intuitive operation and functionality

The PeakMeter PM830L multimeter has been designed with user convenience in mind.

✔ Large backlit LCD display – clear measurement results even in low light.

✔ Ergonomic shape and adjustable stand – makes it easier to set the meter on a workbench.

✔ Easy-to-access buttons – separate button for screen backlighting and HOLD function.

✔ Sturdy range switch – precise adjustment and comfortable operation.

Convenient connection of measuring leads

The meter has four dedicated inputs for connecting measuring leads:

• VΩmA – for measuring voltage, resistance, and current up to 200 mA.

• COM – standard socket for the black measuring lead.

• 10A – for measuring current up to 10A.

On the back of the device, there are dedicated holders for the leads, allowing for convenient storage.

Applications of the PeakMeter PM830L multimeter

• Servicing electronic devices – testing components and electrical circuits.

• Home and hobby repairs – checking electrical installations and cables.

• Battery and accumulator testing – measuring cell voltage and testing their efficiency.

• Education and training – an excellent tool for learning the basics of electronics.

• Professional and workshop use – ideal for diagnosing electrical and electronic systems.

Summary – why choose PeakMeter PM830L?

✅ High measurement precision – accurate values of voltage, resistance, and current.

✅ Backlit LCD screen – convenient reading in any conditions.

✅ HOLD function – freezes the measurement result on the screen.

✅ Sturdy rubber protective case – increased resistance to damage.

✅ Ergonomic design – comfortable to use and transport.

✅ Universal application – excellent for professionals and hobbyists.

Thanks to its functionality, accuracy, and user convenience, the PM830L model is the ideal choice for every electrician, electronics technician, and DIY enthusiast!

PeakMeter is a renowned manufacturer of modern measuring instruments, including multimeters, clamp meters, insulation testers, and anemometers. The company is recognized for its high quality, reliability, and innovative solutions, making its products widely trusted by professionals worldwide.
