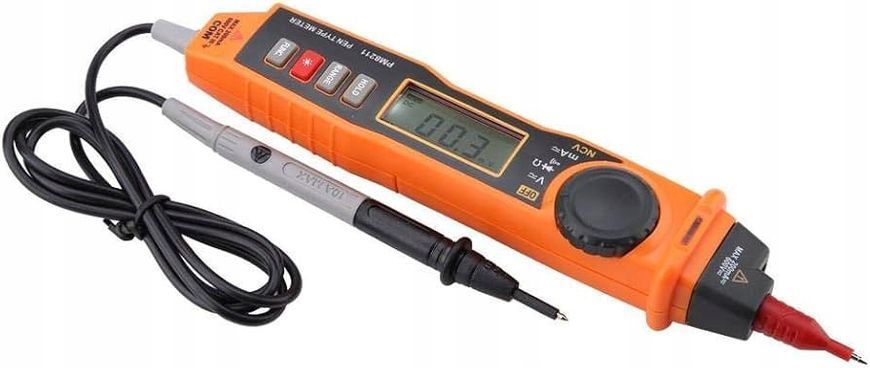

PEN-SHAPED MULTIMETER WITH NON-CONTACT FUNCTION

PEAKMETER PM8211 VOLTAGE DETECTION

Compact and functional pen-shaped meter

Practical solution for electricians and electronics

The PeakMeter PM8211 is a modern measuring device with a compact pen-shaped design that allows for quick and precise measurements of voltage, current, and resistance. With the NCV function, the meter enables non-contact detection of live wires, enhancing work safety.

The device is equipped with a built-in LED flashlight that facilitates work in poorly lit areas. The meter is perfect for use in electrical workshops, service centers, and during the daily work of installers.

Main features and advantages

• Non-contact voltage detection NCV – quick identification of live wires

• AC/DC voltage measurement – up to 600V

• AC/DC current measurement – up to 0.2A

• Resistance measurement – up to 20 MΩ

• Automatic and manual range selection – full control over measurements

• HOLD function – freeze the result on the screen

• Diode and continuity testing – quick diagnostics of electrical circuits

• Clear LCD display (1999 readings) – precise result indications

• Built-in LED flashlight – additional lighting for the work area

• Battery power (2 × AAA) – low energy consumption

• Ergonomic design – comfortable one-handed use

• Protective case included – safe storage and transport

Technical specifications:

• DC voltage measurement range: 0.2 - 600V (accuracy ±0.5%)

• AC voltage measurement range: 2 - 600V (accuracy ±0.8%)

• DC current measurement range: 0.02 - 0.2A (accuracy ±1.8%)

• AC current measurement range: 0.02 - 0.2A (accuracy ±2.0%)

• Resistance measurement range: 0.2 - 20 MΩ (accuracy ±2%)

• Number of readings: 1999

• Power supply: 2 × AAA battery (3V)

• LCD display: yes, with backlight

• NCV function: yes, non-contact voltage detection

• LED flashlight: yes

• Dimensions: 225 × 40 × 25 mm

• Weight: 0.25 kg

Compact design and ease of use

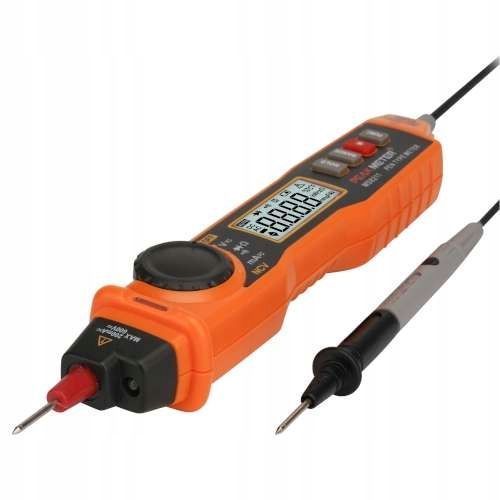

The PM8211 multimeter features an ergonomic design that allows for comfortable one-handed operation. The built-in red test lead is part of the housing, ensuring the device is always ready for use. The black lead on a flexible 1-meter cable provides convenience during measurements.

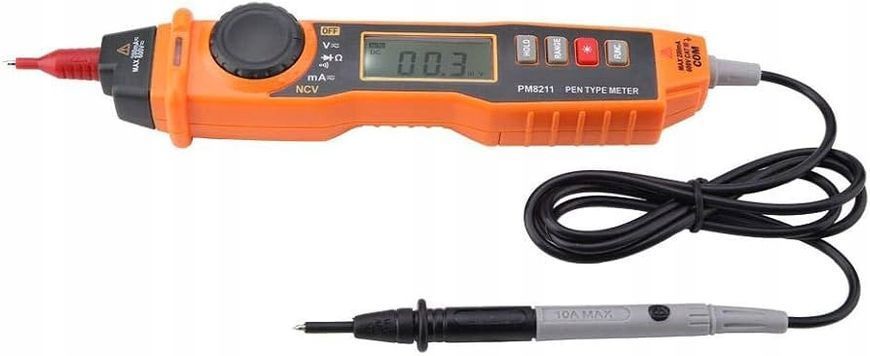

The meter's housing includes a clear LCD display, a mode selection dial, and four functional buttons:

• HOLD – freeze the measurement on the screen

• RANGE – select measurement sub-ranges

• BACKLIGHT/FLASHLIGHT – activate the screen backlight and flashlight

• FUNC – change operating modes

With the backlit display and built-in LED flashlight, the device is convenient to use even in low-light conditions.

Applications of the PM8211 multimeter

• Diagnostics of electrical installations – quick measurements of voltage and current
• Testing electronic components – checking resistance, diodes, and continuity
• Non-contact detection of live wires (NCV) – increased safety
• Work in low visibility conditions – built-in LED flashlight
• Quick and precise measurements in hard-to-reach places

Summary – why choose PM8211?

• NCV function – non-contact voltage detection in wires
• Automatic and manual range selection – greater control
• Built-in red test lead – always ready for use
• Ergonomic shape – comfortable one-handed operation
• LED flashlight and screen backlight – ideal for working in dark places
• Sturdy construction and protective case included – durability and convenience of transport

With its compact design, versatility, and advanced features, the PM8211 is an excellent choice for electricians, installers, and hobbyists who need a precise, convenient, and reliable meter for daily work.
