NETWORK SOCKET TESTER GT85

Fast and precise diagnostics of electrical sockets and RCD switches

Reliable tool for

controlling electrical installations:

The GT85 tester is a compact and easy-to-use device designed for quick diagnosis of electrical sockets and testing of residual current devices (RCD). It allows for checking the correctness of wire connections in the socket and assessing the safety of the electrical installation.

Thanks to its simple and intuitive operation, it is suitable for use in homes and offices, as well as in industrial facilities and public utility buildings. The tester is indispensable during inspections and servicing of electrical lines, enabling quick detection of potential faults.

Key features and benefits:

✔ Fast diagnostics – immediate detection of incorrect socket polarity and wire faults.

✔ Testing of residual current devices (RCD) – ability to check the correct operation of safety systems.

✔ Universal application – effective in apartments, offices, commercial and industrial facilities.

✔ Easy operation – just plug the device into the socket and read the diagnostic result.

✔ Compact size and ergonomic design – convenient to use and transport.

Technical parameters:

• Operating temperature range: 0°C - 40°C

• Working humidity: 20% - 75% RH

• Storage temperature range: -10°C - 50°C

• Storage humidity: 20% - 80% RH

• Maximum working height: up to 2000 m above sea level

• RCD test current: 30 mA

• Operating voltage: 220V ± 20V

• CE certificate – compliance with safety standards.

• Protection level: CAT II 300V

Testing the residual current device (RCD)

The tester is equipped with a dedicated RCD button, which allows checking the correct operation of the residual current device.

How to perform the test?

1️⃣ Connect the tester to a working electrical socket.

2️⃣ Press and hold the RCD button for 3 seconds.

3️⃣ If the residual current device activates and disconnects the voltage – it means the installation is functioning correctly.

4️⃣ If the switch does not disconnect – it may be damaged. In this case, contact a qualified electrician to fix the fault.

COMPARATIVE TABLE WITH TEST RESULTS

The individual icons on the device indicate, respectively, from the top:

1. Correct connection
2. No grounding
3. No neutral wire
4. No phase wire
5. Phase wire swapped with grounding wire
6. Phase wire swapped with neutral wire
7. Phase wire swapped with grounding wire and no grounding*

* the tester cannot distinguish between the reverse connection of the neutral wire with the grounding wire.

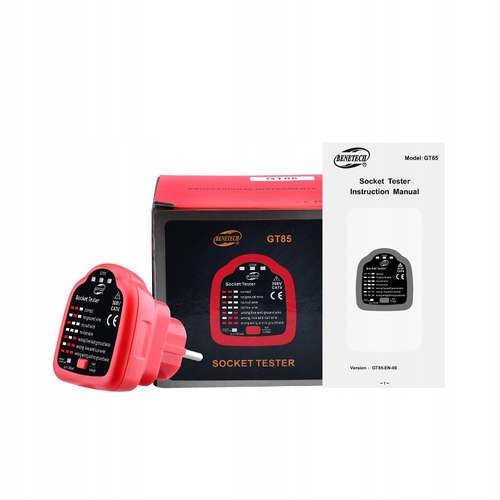

SET CONTENT:

• Network tester

• Original manufacturer packaging

• User manual

BENETECH is a manufacturer of professional measuring and control devices.

All products meet high quality standards and undergo thorough inspection before shipment. As a result, BENETECH products are highly sought after in the market and are considered reliable and high quality, while being offered at an affordable price.
