PAIR CABLE FINDER - CABLE DETECTOR Benetech GT67

Cable Tester (interference resistant)

RJ45 Cable and Wire Pair Finder – Professional Network Diagnostic Tool

The Benetech brand wire pair finder is an advanced device designed for accurate diagnostics and control of network cabling. Its functionality allows for identifying and locating wires without the need to breach their insulation.

Versatility of Applications

The presented device offers many useful features:

• Cabling Tracking – allows for quick and precise locating of wires in the network.
• Wiring Sequence Verification – enables checking the correctness of connections and eliminating installation errors.
• Fault and Failure Control – helps in locating and diagnosing problems related to wire damage or incorrect data transmission.

An Essential Tool for Professionals

The meter is characterized by high precision and ease of use, making it a non-invasive tool ideal for:

• Installers – facilitates quick and effective network installation.
• Technicians – ensures accurate control and diagnostics of low voltage lines.
• Installers – assists in optimizing and maintaining existing network connections.

Compact and Practical Solution

The Benetech wire finder is a tool that combines portability with advanced diagnostic features. With its solid construction and versatility, it is an indispensable aid in both daily work and demanding network projects.

TECHNICAL SPECIFICATION:

Transmitter:

• Display: LED panel
• Signal transmission distance: > 1km
• Operating temperature range: -10 ~ 40°C (14 ~ 104 °F)
• Operating humidity range: 10 ~ 95% RH
• Storage temperature range: -10 ~ 40 °C (14 ~ 104 °F)
• Dimensions: 63 x 134 x 31mm
• Power supply: 3x AAA 1.5V battery
• Weight: 138 g

Receiver:

• Display: LED panel
• Operating temperature range: -10 ~ 40 °C (14 ~ 104 °F)
• Operating humidity range: 10 ~ 95% RH
• Storage temperature range: -10 ~ 40 °C (14 ~ 104 °F)
• Dimensions: 40 x 200 x 32mm
• Power supply: 1x 6F22 9V battery
• Weight: 119.9g

Functions and Features of the Professional Network Cable Tester

The presented device is an advanced cable tester that allows for comprehensive control of network cabling. With a wide range of functions, it is suitable for diagnosing wires at various stages of installation and maintenance.

Main Capabilities of the Tester

• Checking Wires over Long Distances – enables detection of breaks and errors in cabling even over large distances.
• Testing Internet Cables – allows for verification of the proper functioning of RJ45 cables.
• Voltage Presence Control – ensures safe operation by informing about the presence of voltage in wires.
• Polarity Checking – facilitates identification of the correctness of connections in electrical circuits.
• Detection of Short Circuits and Wire Damage – helps in quickly diagnosing technical problems.

Additional Features Enhancing Work

• Sensitivity and Signal Volume Adjustment – allows for adjusting settings to working conditions, ensuring precise wire detection.
• Headphone Output – enables operation in noisy environments, minimizing the risk of missing a signal.
• Built-in Mini Flashlight – provides convenience of use in poorly lit areas.
• Low Battery Indicator – warns of the need to replace the power supply, preventing work interruptions.

A Professional Tool for Demanding Users

Thanks to its functionality and high-quality construction, the cable tester is perfect for both professional and home applications. It is an invaluable support for the work of installers, technicians, and installers.

Application of the Professional Wire Pair Finder

The wire pair finder is a device that finds wide application in the diagnostics and repair of cabling systems. Due to its versatility, it allows for quick and precise localization of wire problems in various installations.

Key Functions of the Device

• Localization of Broken Wires

  Precisely indicates the location where the continuity of the wire has been broken, significantly speeding up the repair process.

• Detection of Wire Damage Points

  Allows for accurate localization of damage, enabling quick and effective service intervention.

• Detection of Ringing Signal on Telephone Lines

  Checks for the presence of a ringing signal, facilitating diagnostics in telephone systems.

• Identification of Telephone Line Status

  Informs about the current status of the telephone line, helping to resolve issues with voice calls and data transmission.

• Generating a Constant Signal for Wire Identification

  Allows for sending a signal that makes it easy to identify a specific wire among a bundle of other cables, eliminating the risk of mistakes during work.

Universality and Precision

The wire pair finder is an essential tool for installers, technicians, and installers, providing reliability and convenience when working with telephone, network, and electrical cabling. It makes the process of localization and repair faster and more efficient.

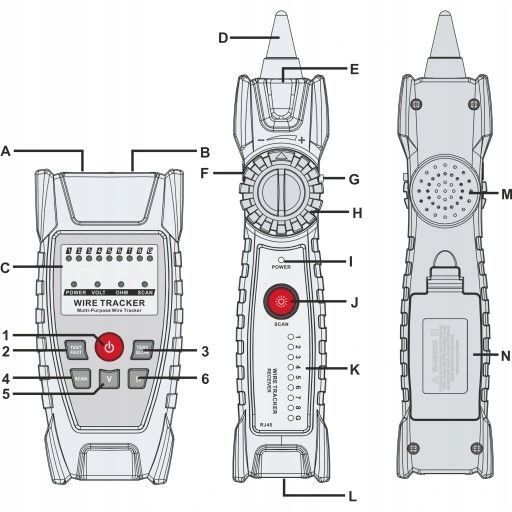

DESCRIPTION OF CABLE TESTER ELEMENTS

Construction of the Tester:

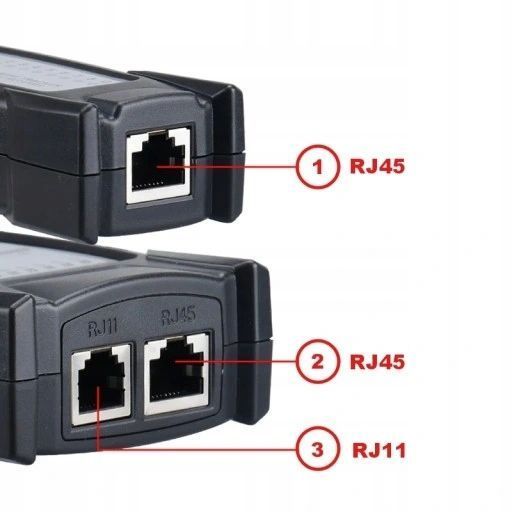

• A. RJ45 Test Socket
• B. RJ11 Test Socket
• C. Transmitter Signal LEDs
• D. Signal Tracking Sensor Probe
• E. Flashlight
• F. Headphone Jack
• G. Flashlight Switch
• H. Signal Volume Control Knob
• I. Receiver Operation Indicator
• J. Wire Scanning Function Button
• K. Receiver Signal LEDs
• L. RJ45 Test Socket of the Receiver

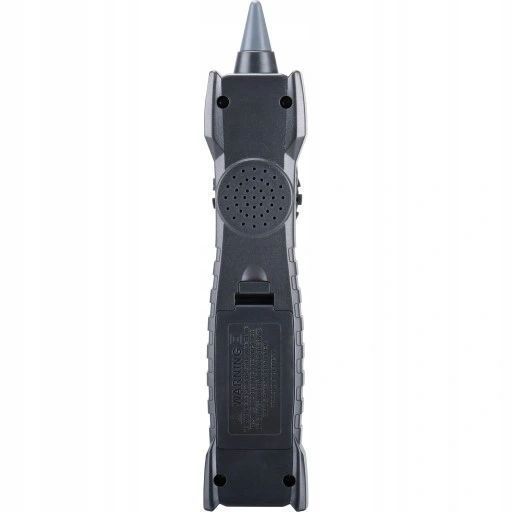

• M. Audio Speaker
• N. Battery Compartment Cover

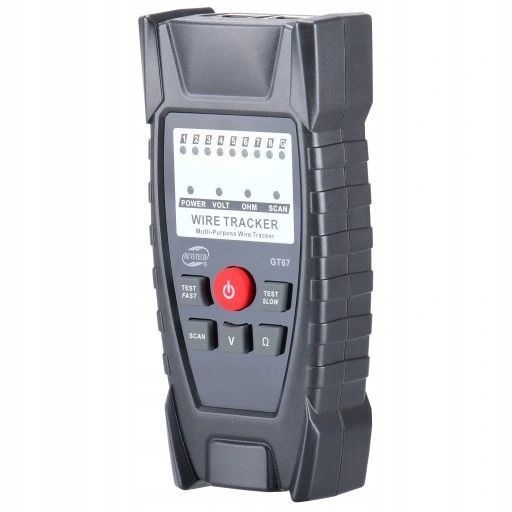

Description of Buttons:

• (1) POWER: power button
• (2) TEST FAST: button for quick verification of the correct order of wires in the cable
• (3) TEST SLOW: button for slow verification of the correct order of wires in the cable
• (4) SCAN: wire scanning function button
• (5) V: button to activate voltage detection function
• (6) Ω: button to activate short circuit detection function
