ULTRASONIC THICKNESS GAUGE – PRECISION AND FUNCTIONALITY

Modern device for quick and non-invasive thickness measurements of materials

Precise measurements in every industry

The advanced ultrasonic thickness gauge is a modern tool that uses a microprocessor measurement system for accurate analysis of material thickness and measurement of sound propagation speed. The device provides fast and reliable results, eliminating the need for mechanical damage to the surfaces of the tested objects.

Thanks to the intuitive interface and clear, colorful HD screen, operating the device is extremely simple and convenient.

Versatile application

The gauge has a wide range of applications in manufacturing, quality control, maintenance of pipelines and pressure vessels. It is an invaluable tool for monitoring the condition of metal, plastic, and other materials that conduct ultrasonic waves.

It is effective in:

✔ Metal production and processing – quality control of sheets, profiles, pipes.

✔ Aerospace and automotive industries – testing structural components.

✔ Construction and engineering sectors – monitoring the thickness of walls and steel structures.

✔ Industrial technical supervision – analysis of the condition of pressure vessels and pipelines.

The device allows for measurement of the thickness of any material that conducts ultrasonic waves well, whose top and bottom surfaces are parallel. The gauge is suitable for testing:

• Metal

• Plastic

• Ceramics

• Glass

• Aluminum

• Copper

• Resin and other materials

(The device is not suitable for measuring cast iron due to its too large particle structure).

Main functions and features of the gauge:

✔ Color HD screen – clear results even in difficult conditions.

✔ Menu operation – intuitive navigation for easy use.

✔ Memory function – ability to save up to 500 data groups.

✔ Screen brightness adjustment – adapting the display to lighting conditions.

✔ Automatic shutdown – energy saving and longer battery life.

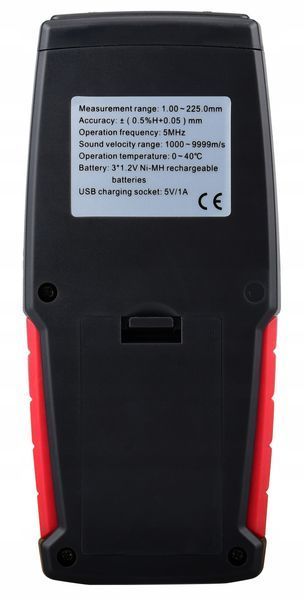

Technical specifications:

• Measurement range: 1 - 225 mm

• Result memory: up to 500 data groups

• Operating frequency: 5 MHz

• Measurement accuracy: ± (0.5% H + 0.05) mm

• Resolution: 0.1 mm (100 - 225 mm)

• Lower limit for pipe measurement: Φ20 × 3 mm (steel)

• Sound speed adjustment range: 1000 - 9999 m/s

• Operating temperature range: 0 - 40°C

• Power supply: 3 × Ni-MH 1.2V battery (charging via USB)

• Charging port: 5V 1A

• Dimensions: 65 × 146 × 30 mm

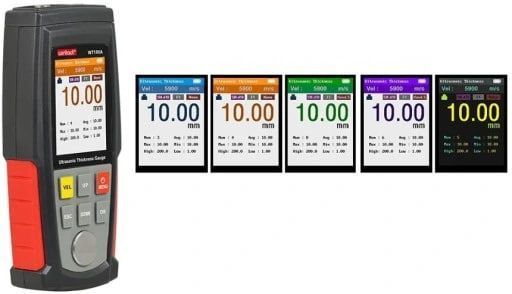

FIVE SCREEN COLORS TO CHOOSE FROM

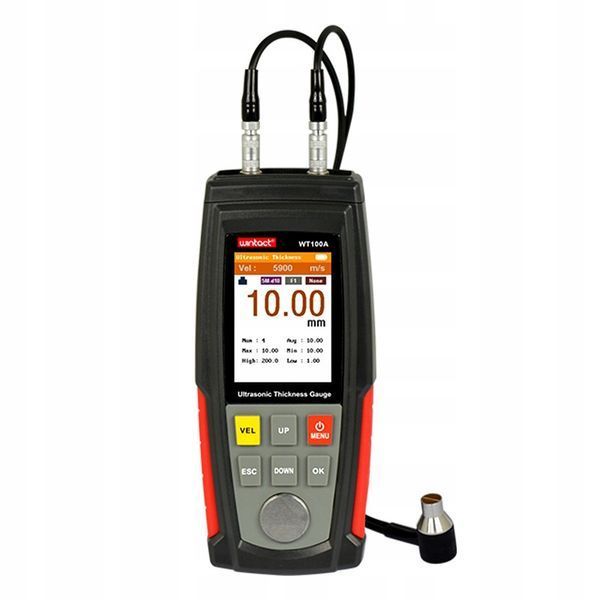

DEVICE COMPONENTS

1. Receiver port
2. Transmission connector
3. Display
4. Housing
5. Function buttons
6. Measurement probe
7. Built-in calibration board

MENU DISPLAY ELEMENTS

1. Measurement mode selection
2. Measurement records
3. Setting value limits
4. Probe
5. Settings
6. Data charts

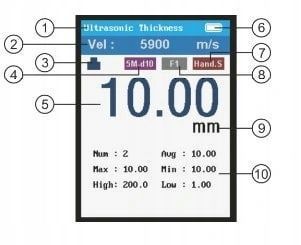

DISPLAY ELEMENTS DURING MEASUREMENT

1. Header
2. Sound speed
3. Coupling icon
4. Selected probe
5. Measured value
6. Battery charge status
7. Currently selected data recording method (Hand.S - manual recording)
8. Unit
9. Detailed measurement information

THE SET INCLUDES:

• WT100A thickness gauge

• Measurement probe

• Power supply

• 3 batteries

• Coupling agent (gel)

• USB charging cable

• User manual

• Case

• Original packaging

Summary – why choose this gauge?

✅ Fast and precise measurements thanks to modern ultrasonic technology.

✅ Ability to test various materials – metal, glass, plastic, ceramics, and many more.

✅ Color HD display – convenient reading of results in any conditions.

✅ Memory support for up to 500 records – real-time analysis of results.

✅ Brightness adjustment and automatic shutdown – comfortable and energy-efficient operation.

✅ Compact dimensions and ergonomic design – ease of transport and use.

If you need a reliable gauge for precise thickness measurements of materials, this model will be an excellent choice!

Wintact is a manufacturer of high-quality control and measurement instruments, such as pyrometers, anemometers, luxmeters, vibrometers, thickness gauges, thermo-hygrometers, etc.

The company's manufacturing facility has implemented a rigorous and comprehensive quality control system. Additionally, all products undergo thorough inspection before shipment. As a result, Wintact instruments are highly sought after in the market and have gained a reputation as reliable, high-quality products at an affordable price.
