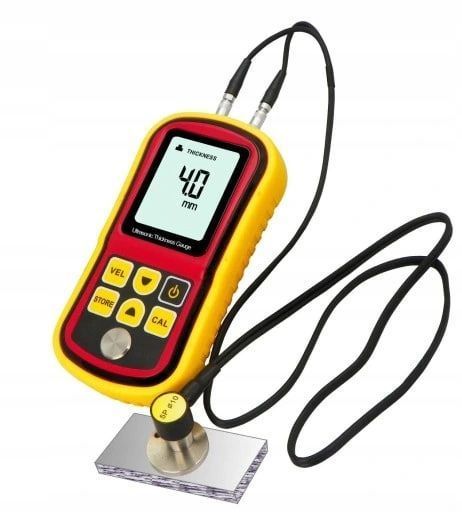

ULTRASONIC COATING THICKNESS GAUGE

Precise measurements of the thickness of various industrial materials

Advanced ultrasonic technology

The ultrasonic thickness gauge is a modern device that, thanks to the use of ultrasonic technology and an advanced microprocessor, allows for quick and precise determination of material thickness. The gauge is excellent for quality control in various industrial sectors, enabling monitoring of wear, thickness control of components, and damage diagnostics.

The device is particularly useful for measuring the thickness of pressure vessel walls, pipelines, and other metal structures, where precise measurements are crucial for the safety and durability of installations.

Main advantages and features:

✔ Fast and accurate calibration – immediate adjustment to measurement conditions.

✔ Automatic zeroing – a function that ensures the precision of results.

✔ Result memory – the ability to save up to 10 recent measurements.

✔ Automatic shutdown – saves energy and extends battery life.

✔ Low battery indicator – information about the need to replace the power supply.

✔ Energy-saving mode – extends the device's operating time.

✔ Wide measurement range – allows for testing various materials, both in laboratory and field conditions.

Applications of the thickness gauge:

The device is used in many industrial sectors where precise thickness measurement is crucial for safety and quality control.

✅ Chemical industry – control of the thickness of walls of tanks and pipelines carrying chemical substances.

✅ Aerospace industry – diagnostics of structural elements of airplanes and helicopters.

✅ Metal industry – testing wear and thickness of sheets, steel structures, pipes.

✅ Shipbuilding industry – control of the thickness of ship hulls and structural elements.

Materials that can be measured

The ultrasonic gauge allows for accurate measurements of the thickness of various materials, including:

• Plastic – quality and durability control of plastics.

• Glass – checking the uniformity and strength of glass elements.

• Metal – assessing the condition and wear of sheets, pipes, steel structures.

• Ceramics – testing ceramic elements for strength.

Technical specifications

• Measurement range: 1.2 - 220 mm (for steel).

• Ultrasonic range: 1000 - 9999 m/s.

• Measurement accuracy: ± 1% H + 0.1.

• Measurement resolution: 0.1 mm.

• Fast calibration function: YES.

• Automatic zeroing: YES.

• Measurement result memory: YES (up to 10 records).

• Automatic shutdown function: YES.

• Battery level indicator: YES.

• Energy-saving mode: YES.

• Device dimensions: 72 × 35 × 145 mm.

• Weight: 1005 g.

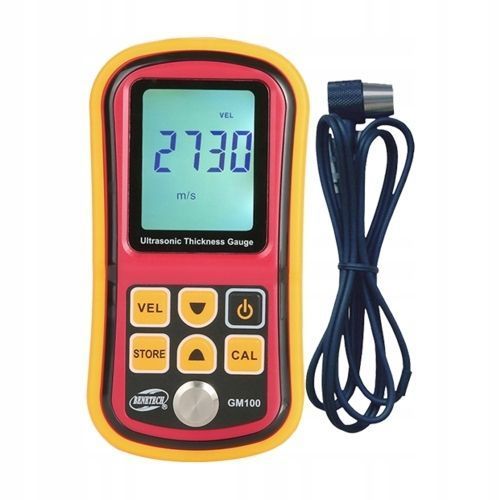

HOUSING

1. Receiver socket
2. LCD display
3. Housing
4. Keyboard
5. Calibration block
6. Receiver socket
7. Transducer
8. Battery compartment (rear housing)

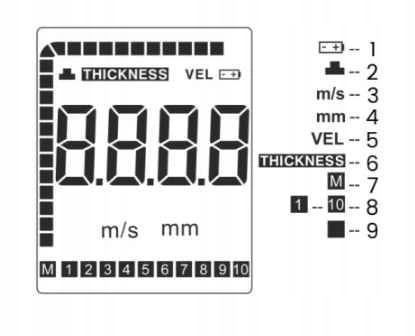

DISPLAY

1. Low battery icon
2. Coupling icon
3. Speed of sound unit
4. Thickness unit
5. Speed icon
6. Thickness icon
7. Value storage icon
8. Stored value number
9. Calibration icon

BUTTONS

1. ON/OFF button
2. Calibration button
3. Speed button
4. Memory button
5. Backlight activation
6. Parameter adjustment button (down)
7. Parameter adjustment button (up)

SET CONTENT:

• Thickness gauge

• 3 pcs. Alkaline battery 1.5V AAA

• Thickness sensor with cable (1m)

• Magnetic suction cup

• User manual

• Practical case

• Coupling agent

Summary

The ultrasonic thickness gauge is a technologically advanced and extremely precise device that allows for quick and accurate measurements in various conditions. With its wide measurement range, intuitive operation, and modern features, it is suitable for both industrial and laboratory applications.

• Accuracy and speed of measurement

• Measurement of various materials – metal, plastic, ceramics, glass

• Automatic saving and energy-saving function

• Ergonomic and sturdy design

This is an indispensable tool for any specialist who needs reliable and precise measurements of material thickness!
