Manual hydraulic sheet metal hole punch SVH2260, 8 t, 22–60 mm dies

The SVH2260 manual hydraulic hole punch is designed for making holes in steel sheets, electrical distribution box enclosures, control cabinets, and other components used during electrical and installation work.

• Punching force: 8 t
• Maximum thickness of standard steel sheet: 3 mm
• Maximum stainless steel thickness: 1 mm
• Die sizes: 22 mm, 27.5 mm, 34 mm, 43 mm, 49 mm, 60 mm
• Piston stroke: 25 mm
• Hydraulic hose length: 1.2 m
• Drive type: manual hydraulic
• Application: punching holes in metal sheets
• Packaging: metal carrying case

The punching force of 8 tonnes allows holes to be made quickly and precisely in standard steel sheets up to 3 mm thick. For stainless steel and other materials with increased hardness, the maximum recommended thickness is 1 mm.

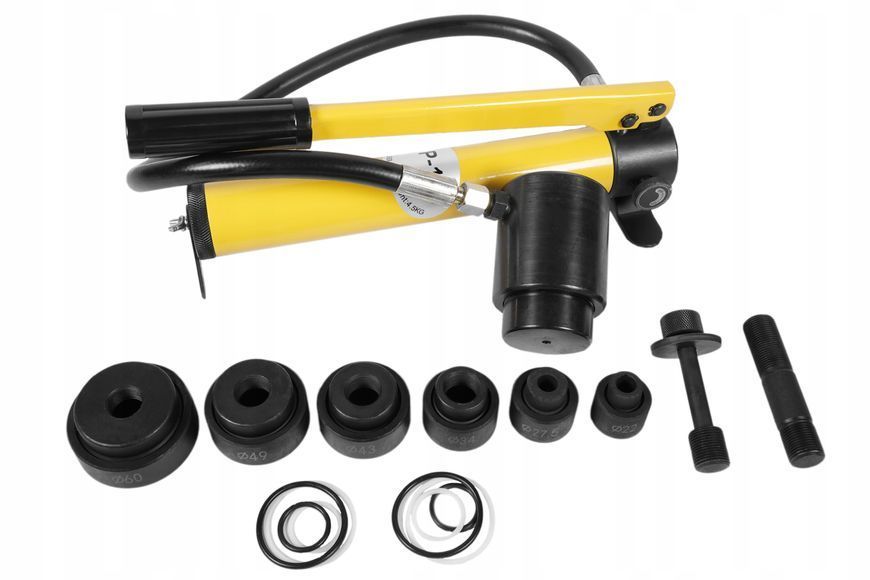

The separate hydraulic pump, connected to the punch head by a hose, facilitates work in areas with limited access and reduces the effort required to make a hole. The set includes interchangeable dies and punches made of tool steel.

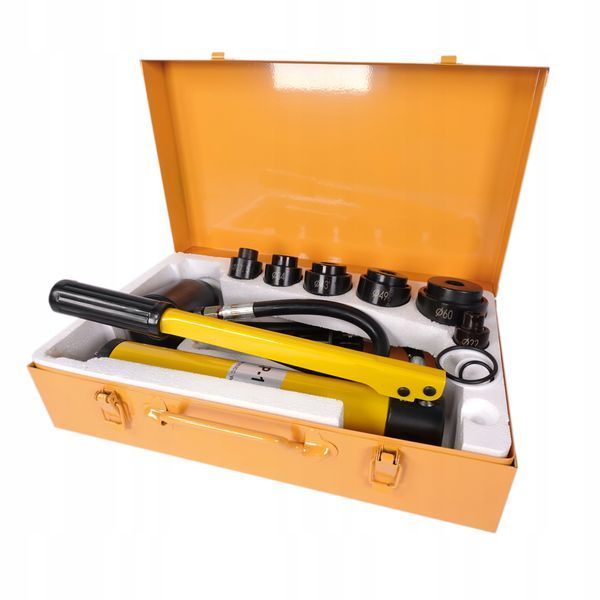

The device is supplied in a durable metal carrying case with a handle, making it easier to transport and safely store all components of the set.
